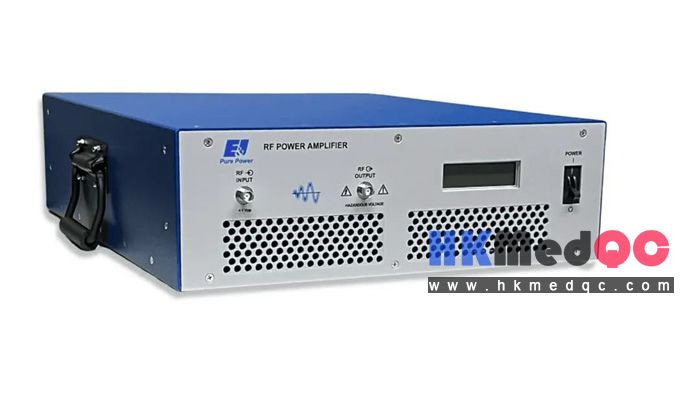

E&I RF Power Amplifier,1040L Wideband Solid State RF Amplifier
Mode：1040L
Type:QA-Instruments
Contact： ken@hkmedqc.com
E&I RF Power Amplifier,1040L Wideband Solid State RF Amplifier.PDF

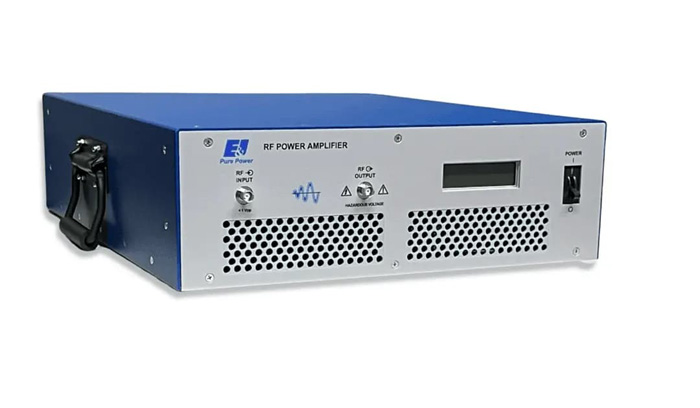

E&I 1040L is full solid-state Class AB wideband RF power amplifier with rated 400W P1dB output power, frequency coverage from 10kHz to 5MHz without band switching. Adopts RF DMOS FET power circuit, built-in forward/reflected dual power meter and RS232 data communication port, forced air cooling design, standard 19-inch 3U rack-mounted cabinet, widely used in laboratory testing, ultrasonic experiment, plasma excitation, induction heating, laser modulation & EMC/EMI test fields.
Product feature:
1.Full frequency 10kHz~5MHz continuous coverage, no internal band switching, ultra-wide working bandwidth; Rated 400W (P1dB), saturated max 500W output power.
2.Nominal 55dB high gain, gain flatness ±2dB across full band, low harmonic distortion＜-13dBc, Class AB quasi-linear output for high-precision RF driving.
3.50Ω input&output impedance, compatible with all standard signal generators; tolerant load 40~60Ω, short/open circuit anti-damage protection, unconditional RF stability.
4.Front panel real-time forward&reflected power dual display (accuracy ±3%), rear RS232 interface for remote data acquisition & equipment reset.
5.Integrated switching power supply 100~240VAC 47~63Hz global voltage, forced air cooling thermal protection, standard 3U 19-inch rack installation.
Specification
Application
1.Ultrasonic transducer driving & ultrasonic performance testing;
2.Laboratory plasma generation & vacuum plasma experiment;
3.Induction heating, low-frequency medium-power heating test;
4.Laser intensity modulation, optoelectronic experiment drive;
5.EMC/EMI RF interference source test, antenna performance calibration;
6.Bio-medical RF excitation, physics university lab research.
Product feature:
1.Full frequency 10kHz~5MHz continuous coverage, no internal band switching, ultra-wide working bandwidth; Rated 400W (P1dB), saturated max 500W output power.
2.Nominal 55dB high gain, gain flatness ±2dB across full band, low harmonic distortion＜-13dBc, Class AB quasi-linear output for high-precision RF driving.
3.50Ω input&output impedance, compatible with all standard signal generators; tolerant load 40~60Ω, short/open circuit anti-damage protection, unconditional RF stability.
4.Front panel real-time forward&reflected power dual display (accuracy ±3%), rear RS232 interface for remote data acquisition & equipment reset.
5.Integrated switching power supply 100~240VAC 47~63Hz global voltage, forced air cooling thermal protection, standard 3U 19-inch rack installation.
Specification
| Model:1040L-400W |
|---|
| Frequency Range:10kHz ~ 5MHz |
| Rated Output Power (P1dB:400W |
| Saturated Max Power:500W |
| Nominal Gain:55dB |
| Gain Flatness:±2dB |
| Harmonic Leve:＜-13dBc |
| Working Class:Class AB |
| Input/Output Impedance:50Ohm |
| Allowable Load:40~60Ω |
| Cooling Mode:Forced Air Cooling |
| Power Supply:100~240VAC,47~63Hz |
| Dimension:134.6 (H)419.1(W)508 (D) mm |
| Net Weight:24.5kg |
| Mounting:19-inch 3U Rack Mount |
Application
1.Ultrasonic transducer driving & ultrasonic performance testing;
2.Laboratory plasma generation & vacuum plasma experiment;
3.Induction heating, low-frequency medium-power heating test;
4.Laser intensity modulation, optoelectronic experiment drive;
5.EMC/EMI RF interference source test, antenna performance calibration;
6.Bio-medical RF excitation, physics university lab research.
FAQ
| Q: Can 1040L work full power across 10kHz-5MHz? |
| A: Yes, full rated 400W continuous output for entire 10kHz~5MHz without derating. |
| Q: Is it safe under short-circuit output? |
| A: Built-in VSWR over-power protection, short/open load will not damage amplifier. |
| Q: What signal source matches this amp? |
| A: Any standard 50Ω function/signal generator with ≤+13dBm input drive. |
