EBT3 radiochromic film,Self Developing Radiation Dosimetry Film EBT3-0810
Mode：EBT3-0810
Type:QA-Instruments
Contact： ken@hkmedqc.com
EBT3 radiochromic film,Self Developing Radiation Dosimetry Film EBT3-0810.PDF
GAFCHROMIC EBT3 film is the most widely used self-developing radiochromic film for clinical radiotherapy dosimetry worldwide.
Different from traditional X-ray film, EBT3 requires no chemical developer, fixer or darkroom processing. The film undergoes irreversible color darkening when exposed to ionizing radiation, and the color depth corresponds linearly to radiation absorbed dose. It supports precise two-dimensional dose mapping, applied for routine radiotherapy quality assurance, complex radiotherapy plan verification and radiation scientific experiments.
| Item | Specification |
| Full Model | EBT3-0810 |
| Brand | Ashland |
| Product Type | Radiochromic Self-Developing Dosimetry Film |
| Working Dose Range | 20 cGy – 2000 cGy |
| Applicable Radiation Energy | 20 keV ~ 10 MV photons; suitable for electron beam radiotherapy |
| Spatial Resolution | High micron resolution for small radiation field |
| Feature | Dual-side symmetric coating, low polarization, minimal scanning angle error |
| Processing Method | No chemical development, exposure naturally develops color |
| Storage Requirement | Unexposed film stored refrigerated & lightproof |
EBT3 is used for patient dose measurement in IMRT planning verification. Dose range: 0.2 - 10 Gy.
EBT-XD is highly suitable for patient dose measurement in SRS and SBRT. Dose range: 0.4 - 40 Gy.
RTQA2 film is used for routine machine QA, such as radiation field/optical field tests/HDR.
MD-V3 film is used for measuring patient doses in the medium to high dose range. Dose range: 1 Gy - 100 Gy.
HD-V2 film is used for ultra-high dose dose measurement requirements. Dose range: 10 Gy - 1000 Gy.
EBT3 is a transparent film with a thickness of 0.28mm, consisting of a central 0.03mm active layer and two 0.125mm transparent protective layers on both sides.

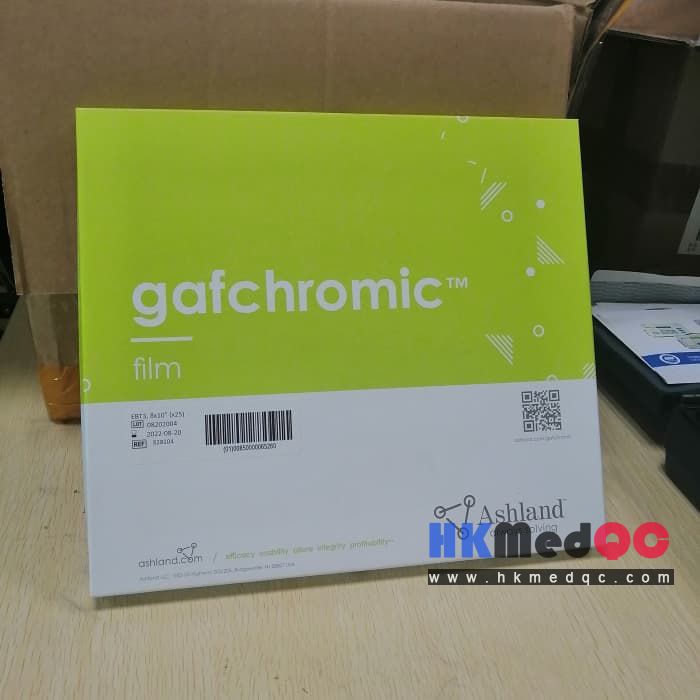

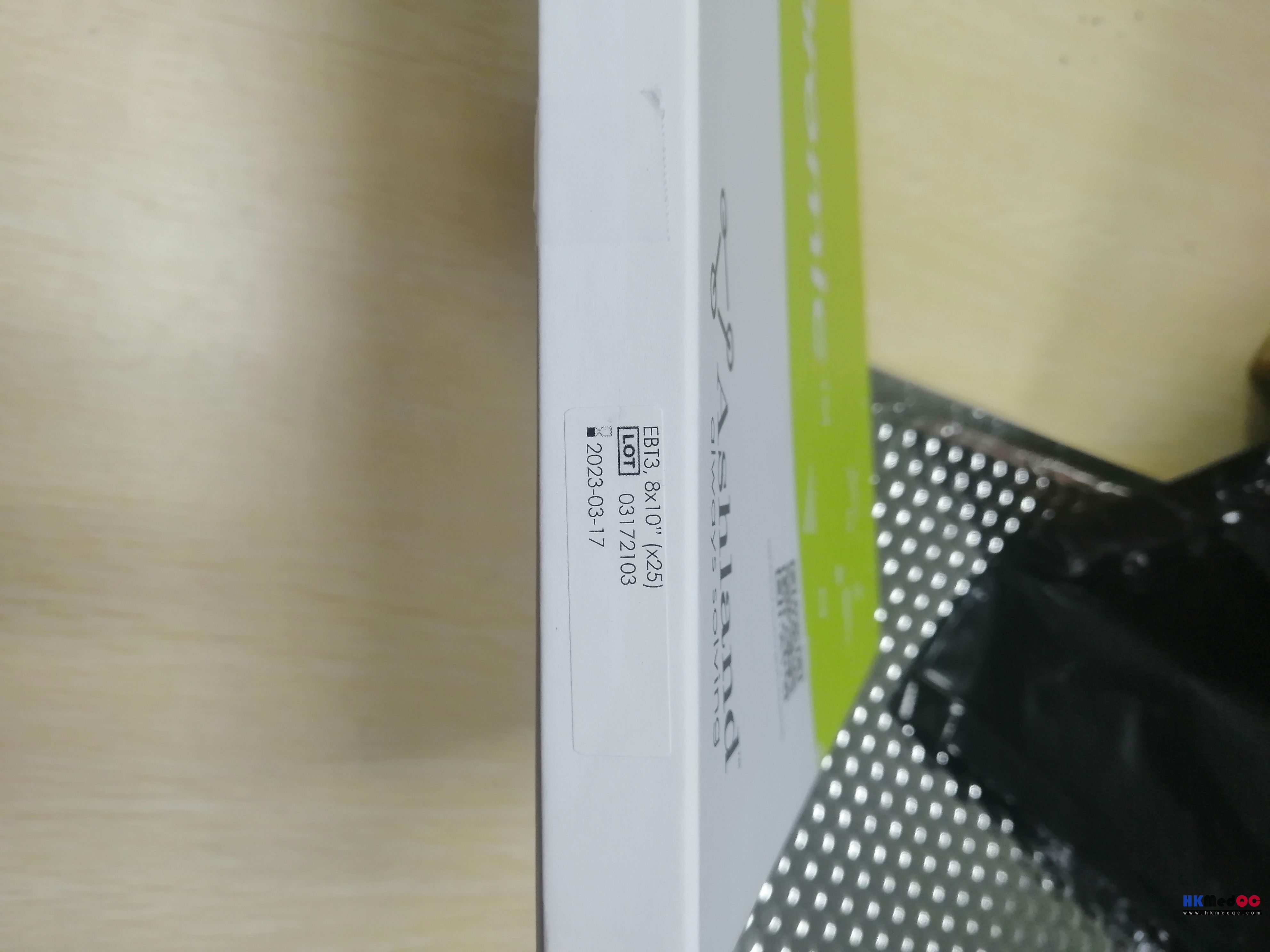

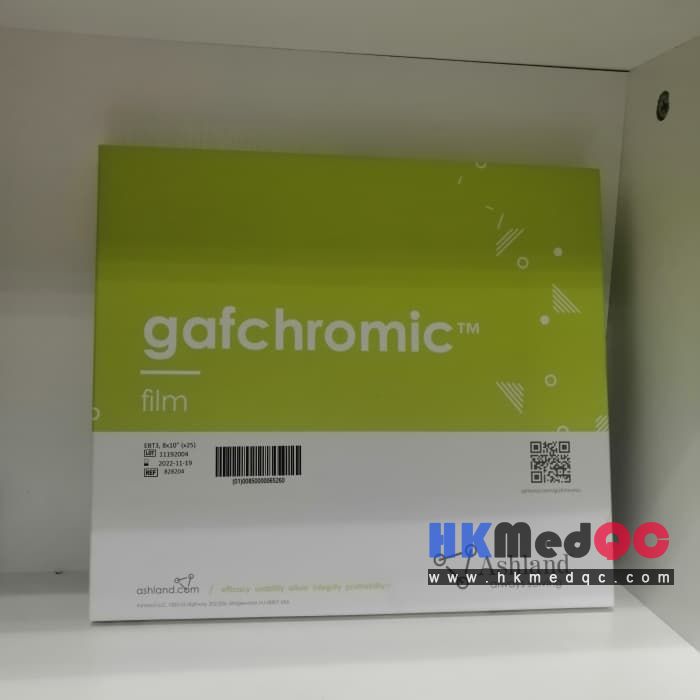

· Dimensions and Packaging: 8″×10″ (25 sheets per box), 14″×17″ (10 sheets per box)
· Dose Range: 1cGy to 4000cGy
· Energy Range: keV to MeV
· Uniformity: ≤±3%
· Resolution: 0.005mm
GAFCHROMIC EBT3 Self-developing Film:
The advantages of GAFCHROMIC EBT3 non-washout film:Extremely high spatial resolution --- 0.005mm
Operated in a bright room, no need for washing, real-time self-developing
Without the noise of a film processor and the artifacts caused by washing
Can be cut to any desired size
Can be used at any angle or bent
Can achieve verification of arc therapy (Rapid Arc, VMAT QA)
Approximately equivalent to human tissue
Not affected by energy and dose segmentation - highly accurate measurement data
No "over-response" caused by low-energy X-ray scattering
Waterproof - can be used in water
Widely adjustable dose range
Long-term stability, with a storage period of over 10 years
User Instructions:
The EBT3 must be used with a high-performance flatbed scanner or digitizer. It is recommended to use the EPSON 10000XL flatbed scanner. The film from the red light channel can achieve the most sensitive response within 8 Gy, from the green light channel it can extend to a dose range of 8 to 40 Gy, and from the blue light channel it can obtain the best uniformity.XR-QA2 X-ray machine QA test film
· Energy range: 20kVp to 200kVp
· Dose range: 0.1cGy to 20cGy
· Clarity: ≥5000dpi
· Size and packaging: 10″×12″ (10 films per box)
8″×10″ (10 films per box)
· Software: FilmQA-XR quantitative analysis software
XR-CT2 CT Slice Thickness Measurement Sheet
· Dose Range: 0.1cGy to 20cGy
· Size: 1.75×12cm
· Packaging: 50 sheets per box
· Energy Range: 20kVp to 200kVp
XR-M2 Breast X-ray Machine QA Test Film
· Energy range: 20KVp to 200KVp
· Test range: 0.1cGy to 20cGy
· Size: 2.4×8cm
· Packaging: 50 films per box
XR-RV3 Interventional Therapy Skin Dose Monitoring Film
· Dose Range: 0.05Gy to 15Gy
· Energy Range: ≥15kVp
· Size: 14″×17″
· Packaging: 10 films per box
· With FilmQA-XR software, an isodose curve diagram can be obtained
