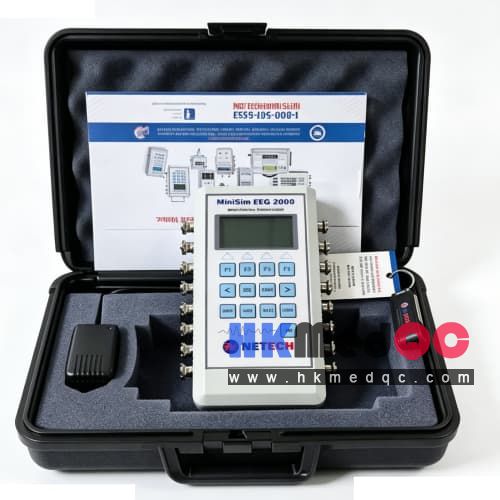

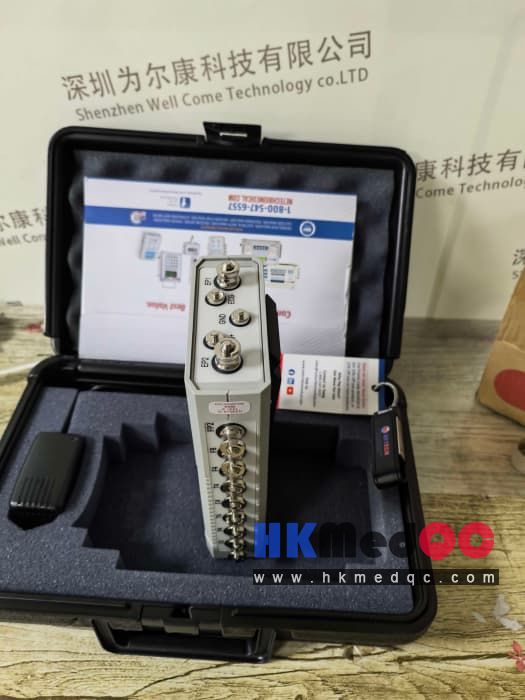

Multi-waveform Simulator MiniSim EEG 2000,Brain electrical simulator
Mode：EEG-2000
Type:QA-Instruments
Contact： ken@hkmedqc.com
Multi-waveform Simulator MiniSim EEG 2000,Brain electrical simulator.PDF
The MiniSim EEG 2000 brain electrical simulator is a versatile instrument for simulating brain electrical waveforms. It is specifically designed for testing various brain electrical monitoring devices, including recorders, sleep research monitors, and multi-channel brain electrical monitoring systems.
This compact instrument based on a microcontroller can simulate six different types of electroencephalogram waveforms, such as Alpha, Theta, Gamma, Delta, Beta and ABR.
In addition to the electroencephalogram waveforms, it also simulates electrocardiogram waveforms as well as sine waves, square waves and triangular waves, among others.
The MiniSim EEG 2000 offers 16 independent outputs.
It can simulate all types of signals.
Normal physiological brain waves: four major rhythms including alpha, beta, theta, and delta, simulating the full cycle of brain wave characteristics during wakefulness, light sleep, and deep sleep.
Pathological abnormal brain waves: epileptic sharp waves, sharp-slow composite waves, diffuse slow waves, and focal abnormal waveforms, suitable for simulating and verifying neurological lesion conditions.
ABR auditory brainstem response waveforms: adapted to the calibration of otological hearing test instruments.
General calibration waveforms: sine waves, square waves, and triangular waves, used for equipment traceability and overall machine performance determination.
Electroencephalogram waveforms
ABR - Alpha Beta Rhythm (1KHz - 4KHz).
Alpha (3-13 Hz), Theta (4-8 Hz), Delta (1-4 Hz), Gamma (30-200 Hz), Beta (12-38 Hz)
Amplitude:
The selectable amplitude range for the user is from 10 uV to 1mV (peak to peak).
Performance waveforms:
Sine wave, Square wave, Triangle wave
)UHTXHQF\: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 Hz.
Amplitude: 10, 20, 40, 50, 100, 200, 300, 400, 500, 1000 microvolts.
Output amplitude calibration:
The full-scale calibration of waveform output is 1mV square wave.
Amplitude accuracy: ±5% (square wave - all channels)
Electrocardiogram rate
Rate: User selectable: 30, 60, 90, 120 bpm
Amplitude: User selectable 0.1, 0.25, 0.50, 0.75, 1.0, 1.5, 2.0 and 2.5 mV.
General specifications:
Temperature range:
Operating temperature: +15°C to +35°C
Storage: 0°C to +50°C. Display screen
Type: 128 x 64 graphic display screen with LED backlight.
Power supply: 7.4 volt lithium-ion battery. 100-230 volt AC input 8.5 volt battery charger.
Shell: High-strength ABS plastic shell.
Size: 7.75 x 4 x 1.5 inches (19.7 x 10.2 x 3.8 cm)
Weight: 0.45 kilograms/1 pound (including battery)
Part No:
333: MiniSim EEG 2000 (Included Accessories -Hard carrying case, LI lon Battery Changer)
Standard Accessories:
333-EEG-CABLE (16 Cup electrode cables)
333-ECG-CABLE (3 Lead ECG cable with Snap Button)
This compact instrument based on a microcontroller can simulate six different types of electroencephalogram waveforms, such as Alpha, Theta, Gamma, Delta, Beta and ABR.
In addition to the electroencephalogram waveforms, it also simulates electrocardiogram waveforms as well as sine waves, square waves and triangular waves, among others.
The MiniSim EEG 2000 offers 16 independent outputs.
It can simulate all types of signals.
Normal physiological brain waves: four major rhythms including alpha, beta, theta, and delta, simulating the full cycle of brain wave characteristics during wakefulness, light sleep, and deep sleep.
Pathological abnormal brain waves: epileptic sharp waves, sharp-slow composite waves, diffuse slow waves, and focal abnormal waveforms, suitable for simulating and verifying neurological lesion conditions.
ABR auditory brainstem response waveforms: adapted to the calibration of otological hearing test instruments.
General calibration waveforms: sine waves, square waves, and triangular waves, used for equipment traceability and overall machine performance determination.
Electroencephalogram waveforms
ABR - Alpha Beta Rhythm (1KHz - 4KHz).
Alpha (3-13 Hz), Theta (4-8 Hz), Delta (1-4 Hz), Gamma (30-200 Hz), Beta (12-38 Hz)
Amplitude:
The selectable amplitude range for the user is from 10 uV to 1mV (peak to peak).
Performance waveforms:
Sine wave, Square wave, Triangle wave
)UHTXHQF\: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 Hz.
Amplitude: 10, 20, 40, 50, 100, 200, 300, 400, 500, 1000 microvolts.
Output amplitude calibration:
The full-scale calibration of waveform output is 1mV square wave.
Amplitude accuracy: ±5% (square wave - all channels)
Electrocardiogram rate
Rate: User selectable: 30, 60, 90, 120 bpm
Amplitude: User selectable 0.1, 0.25, 0.50, 0.75, 1.0, 1.5, 2.0 and 2.5 mV.
General specifications:
Temperature range:
Operating temperature: +15°C to +35°C
Storage: 0°C to +50°C. Display screen
Type: 128 x 64 graphic display screen with LED backlight.
Power supply: 7.4 volt lithium-ion battery. 100-230 volt AC input 8.5 volt battery charger.
Shell: High-strength ABS plastic shell.
Size: 7.75 x 4 x 1.5 inches (19.7 x 10.2 x 3.8 cm)
Weight: 0.45 kilograms/1 pound (including battery)
Part No:
333: MiniSim EEG 2000 (Included Accessories -Hard carrying case, LI lon Battery Changer)
Standard Accessories:
333-EEG-CABLE (16 Cup electrode cables)
333-ECG-CABLE (3 Lead ECG cable with Snap Button)
