GM-300 Electrical Safety Analyzer,Medical Equipment Safety Tester
Mode：GM-300
Type:QA-Instruments
Contact： ken@hkmedqc.com
GM-300 Electrical Safety Analyzer,Medical Equipment Safety Tester,PDF
GM-300 is a professional medical-grade electrical safety testing instrument, also called electrical safety analyzer. Developed specially for medical electrical equipment compliance inspection, it supports comprehensive electrical safety testing of hospital clinical equipment and medical machinery.
The complete machine adopts mature German testing circuit design, stable testing repeatability, built-in mainstream medical safety test modes, fully matches global medical electrical certification standards. It is the standard quality control instrument for medical device manufacturers, hospital biomedical engineering departments and third-party medical testing laboratories.
SPL GM-300 safety compliance tester, GM-300 electrical safety analyzer complies with: IEC 60601 / IEC 62353 / IEC 61010 / VDE 0701-0702
The MPG / MPBetreibV / BetrSichV / DGUV measurement and testing equipment for checking electrical safety 3
PS2 connection for external keyboard or barcode scanner
Internal storage for USER devices and 125 test reports
Automatic or multimeter operation
25 protection conductor measurements in accordance with IEC 60601
User-specific language selection
GM-300 is a measurement and testing device used to check the electrical safety of medical technologies and other electrical equipment. The measurement and testing comply with IEC 60601, IEC 62353 (VDE 0751), IEC 61010 and VDE 0701-702.
GM-300 can operate independently or be controlled by a PC. You can use this device to perform individual measurements or run automatic tests.
The operation of the device is controlled by the cursor, and various functions of the device can be activated by some "yes/no" decisions. In independent operation, the simplest operation is through the 4 membrane buttons integrated in the front panel. Additionally, a numeric keyboard and/or scanner can be connected (depending on technological changes and errors. 12/2020)
This is helpful for inputting text, such as the names of inspectors and equipment names.
It becomes separate from GM-300
Measuring DC and AC current components (AC/DC measurement, RMS) for patient leakage current and patient auxiliary current
Conforming to IEC 60601.
The non-volatile memory allows a maximum of
Up to 125 test reports to be saved. These can be downloaded from the built-in log
The Centronics printer interface directly from the test equipment to the standard printer or through connecting the RS-232 interface to a suitable PC that can run PC software. In order to control
The GM-300, in PC mode, is a 100% IBM-compatible industrial standard computer.
Communication between the PC and the GM-300 is achieved through RS-232.
The complete machine adopts mature German testing circuit design, stable testing repeatability, built-in mainstream medical safety test modes, fully matches global medical electrical certification standards. It is the standard quality control instrument for medical device manufacturers, hospital biomedical engineering departments and third-party medical testing laboratories.
SPL GM-300 safety compliance tester, GM-300 electrical safety analyzer complies with: IEC 60601 / IEC 62353 / IEC 61010 / VDE 0701-0702
The MPG / MPBetreibV / BetrSichV / DGUV measurement and testing equipment for checking electrical safety 3
SPL GM-300 Safety Compliance Tester, GM-300 Electrical Safety Analyzer Features:
Menu navigation controlled by cursor or PC controlPS2 connection for external keyboard or barcode scanner
Internal storage for USER devices and 125 test reports
Automatic or multimeter operation
25 protection conductor measurements in accordance with IEC 60601
User-specific language selection
GM-300 is a measurement and testing device used to check the electrical safety of medical technologies and other electrical equipment. The measurement and testing comply with IEC 60601, IEC 62353 (VDE 0751), IEC 61010 and VDE 0701-702.
GM-300 can operate independently or be controlled by a PC. You can use this device to perform individual measurements or run automatic tests.
The operation of the device is controlled by the cursor, and various functions of the device can be activated by some "yes/no" decisions. In independent operation, the simplest operation is through the 4 membrane buttons integrated in the front panel. Additionally, a numeric keyboard and/or scanner can be connected (depending on technological changes and errors. 12/2020)
This is helpful for inputting text, such as the names of inspectors and equipment names.
It becomes separate from GM-300
Measuring DC and AC current components (AC/DC measurement, RMS) for patient leakage current and patient auxiliary current
Conforming to IEC 60601.
The non-volatile memory allows a maximum of
Up to 125 test reports to be saved. These can be downloaded from the built-in log
The Centronics printer interface directly from the test equipment to the standard printer or through connecting the RS-232 interface to a suitable PC that can run PC software. In order to control
The GM-300, in PC mode, is a 100% IBM-compatible industrial standard computer.
Communication between the PC and the GM-300 is achieved through RS-232.

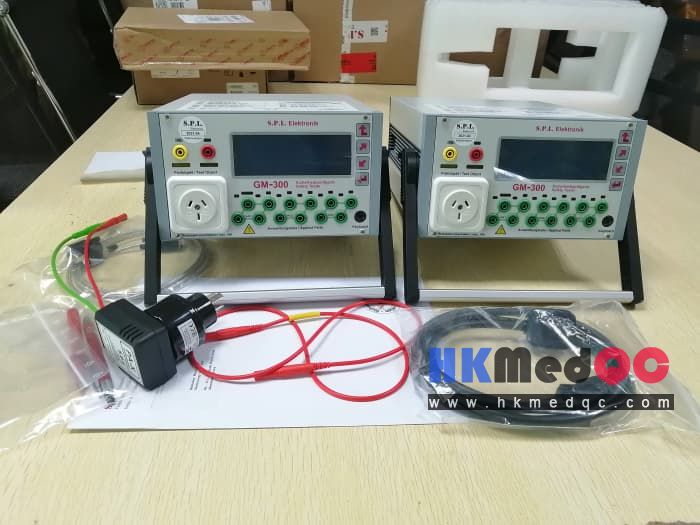

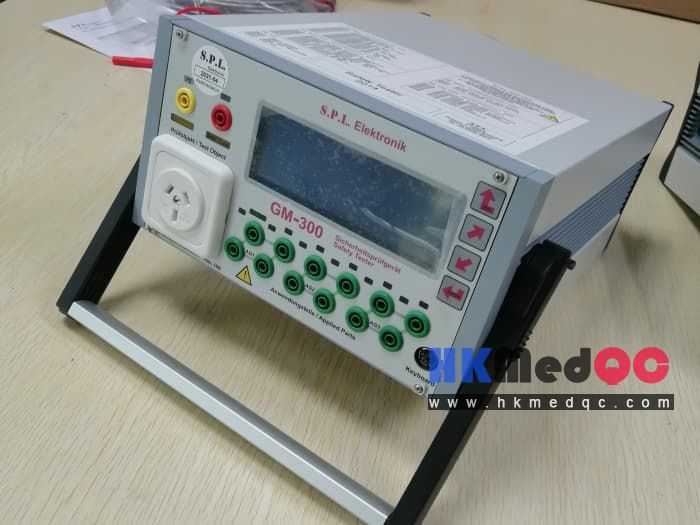

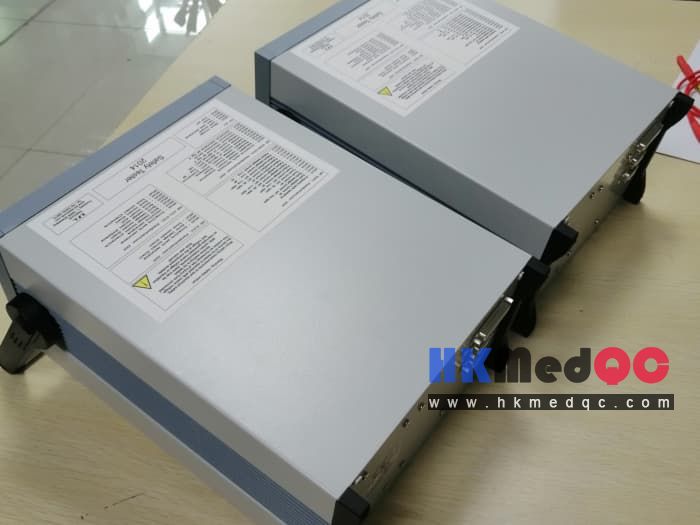

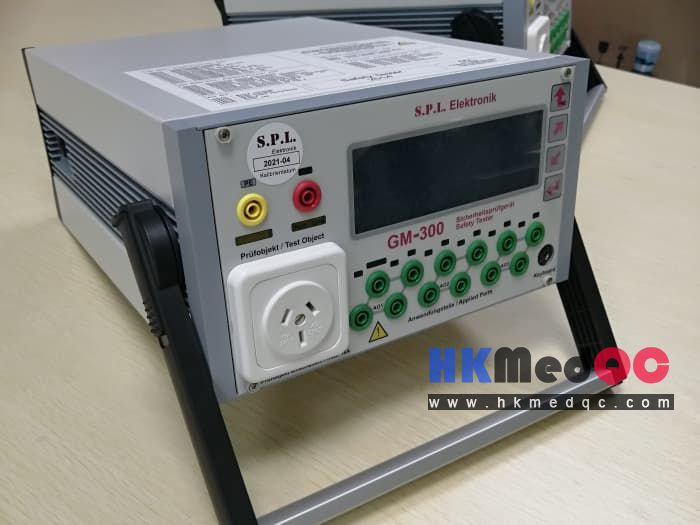

GM-300 Electrical Safety Analyzer,Medical Equipment Safety Tester real photo:
