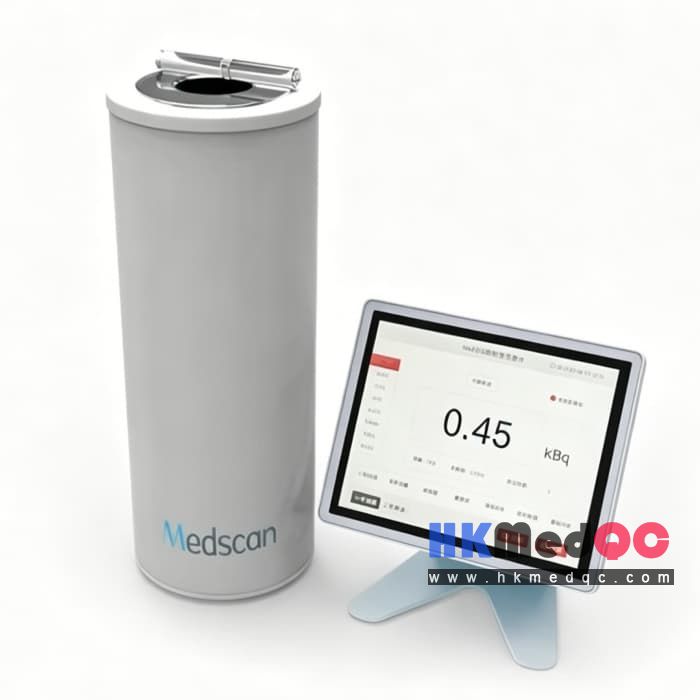

HA4300-R Radioactivity Calibrator,Nuclear Medicine Dose Calibrator

Mode:HA4300-R

Type:QA-Instruments

Contact:   ken@hkmedqc.com

HA4300-R Radioactivity Calibrator,Nuclear Medicine Dose Calibrator.PDF

HA4300-R Intelligent Radioactivity Calibrator, 10.4-inchTouch Screen Nuclear Medicine Dose Calibrator

Product features of the HA4300-R radioactive activity meter:

1.The measurement accuracy is high. For typical samples, the response time is generally within 1 to 3 seconds.

2. High-definition large screen, intelligent, accurate and stable;

3. The measurement interface is preset with common isotopes, allowing for smooth switching and easy operation.

4.Compatibility with common radionuclides: Supports therapeutic radionuclides widely used in nuclear medicine including Samarium-153, Yttrium-90, Iodine-131, Phosphorus-32, as well as positron-emission diagnostic radiopharmaceuticals such as Fluorine-18, Carbon-11, Oxygen-15, Nitrogen-13, Gallium-68, etc.

5.A dedicated syringe holder is configured, enabling the measurement of implanted 125I seed sources.

6. It is equipped with nearly a hundred common isotopes and supports the addition of new isotopes, meeting the application needs of users in various scenarios.

7. It can be externally connected to a dedicated printer to output the measurement report of the nuclide activity.(optional).

8.One-click bilingual switching: The main control system supports one-click switching between Chinese and English operation interfaces for efficient and convenient use.

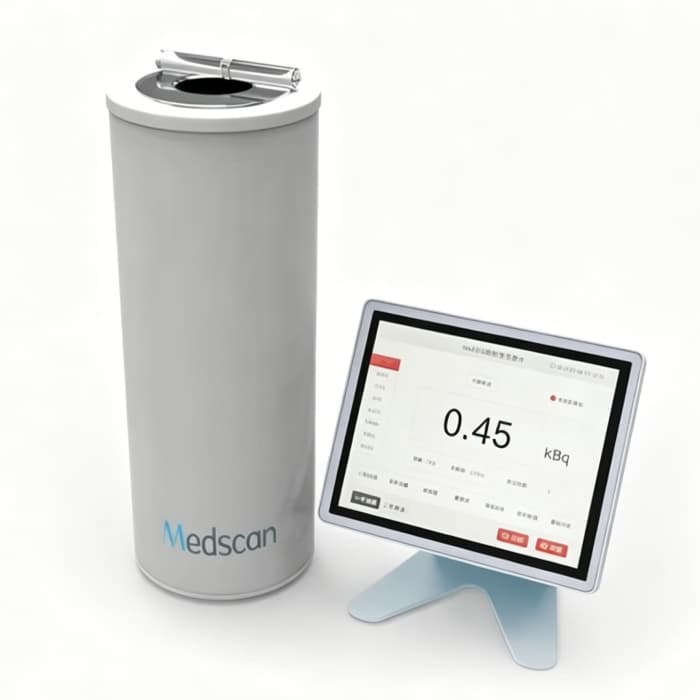

HA4300-R Radioactivity Calibrator,Nuclear Medicine Dose Calibrator

Technical Specifications

Product Model HA4300-R
Detector Type Thin-walled aluminum well-type ionization chamber
Measuring Range 0.1 µCi – 6 Ci (Technetium-99m); 0.1 µCi – 2 Ci (Fluorine-18)
Relative Intrinsic Error ≤ 3%
Resolution 0.01 µCi
Repeatability ≤ 1%
Instability ≤ 2%
Measurement Units Bq, Ci
Measurable Radionuclides Yttrium-90, Samarium-153, Gallium-67, Strontium-90, Phosphorus-32, Fluorine-18, Carbon-11, Nitrogen-13, Oxygen-15, Iodine-131, etc.
Communication Interfaces RJ45, USB, RS232
