HKM-STA01 Package Seal Integrity Tester,Vacuum Leak Tester
Mode：HKM-STA01
Type:QA-Instruments
Contact： ken@hkmedqc.com
HKM-STA01 Package Seal Integrity Tester,Vacuum Leak Tester.PDF
Product Overview
This vacuum leak tester is designed for negative pressure seal leakage testing and microbial intrusion testing of various packaging materials. It works for pharmaceutical vials, penicillin bottles, plastic solid bottles, blister packs, aluminum-plastic soft bags, syringes, pipettes, vacuum bags, cans, milk powder bags, aluminum foil pouches, eye drop bottles, medical device packaging, liquid bags, jelly cups, crimp caps, cosmetic bottles & pouches, daily chemical containers, and more.
| Parameter | Specification |
|---|---|
| Main Controller Dimension | 300×240×125 mm |
| Power Supply | AC220V, 50Hz |
| Vacuum Pump Power | 150W |
| Vacuum Setting Range | 0 ~ -90 KPa |
| Outer Diameter of Sealing Barrel | Φ300 × 300 mm |
| Standard Effective Chamber Size | Φ270 × 200 mm |
| Adjustable Test Time | ≤999 Seconds |
| Time Accuracy | 1 Second |
| Pumping Speed | 2 KPa·L/S |
| Operating Ambient Temperature | -20 ~ 50°C (3 mins preheating required for -20°C ~ 0°C environment) |
| Total Machine Weight | Approx. 20 KG |
Application Industries
Widely adopted by pharmaceutical manufacturers, pharmaceutical packaging material factories, drug inspection institutions, medical device enterprises, food processing plants, and cosmetic production companies for package seal integrity inspection.
Testing Principle
- Water Immersion Bubble Method: Evacuate the vacuum chamber to create a pressure differential between the inside and outside of submerged samples. Observe air escaping from specimens to judge sealing performance.
- Dry Expansion Method: Generate internal-external pressure difference by vacuum pumping. Monitor specimen expansion during vacuuming and shape recovery after releasing vacuum to evaluate tightness.
Compliance Standards
Complies with international & national standards including GB/T15171, ASTM D3078.
Core Features
- Precise tactile control buttons for intuitive, simple operation
- High-transparency acrylic vacuum chamber, sturdy and long service life
- Automatic constant pressure air replenishment to maintain preset vacuum level throughout tests
- Premium vacuum components deliver stable, durable performance
- Adjustable holding time with digital countdown display

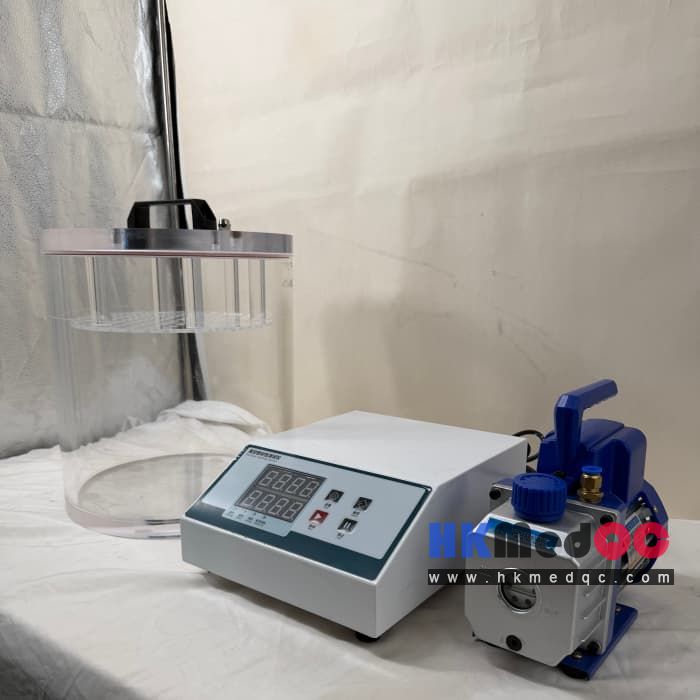

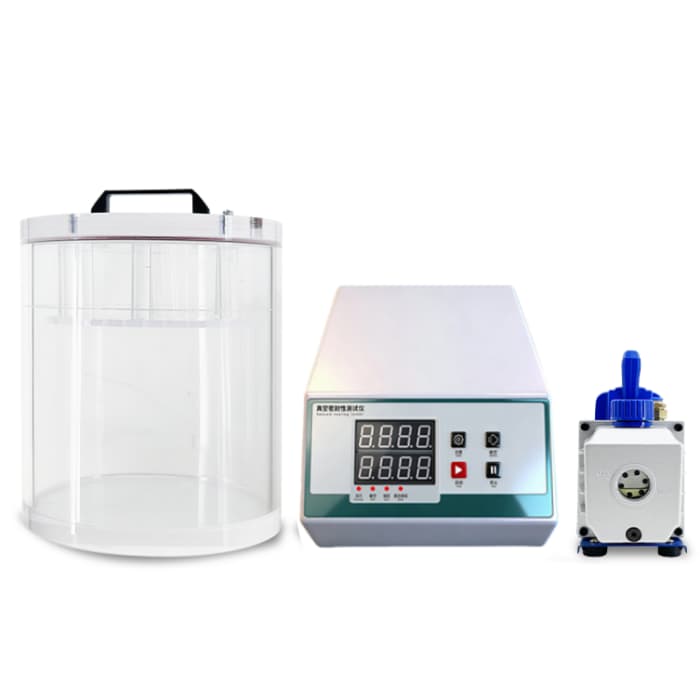

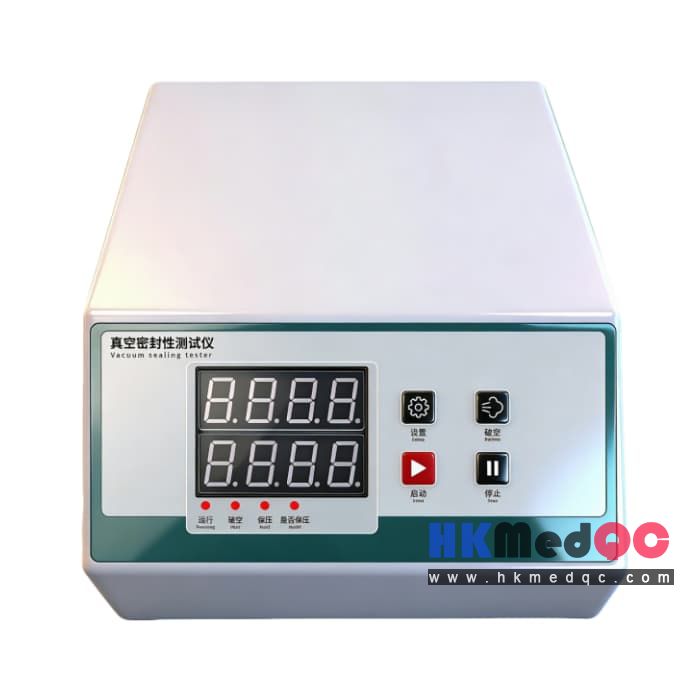

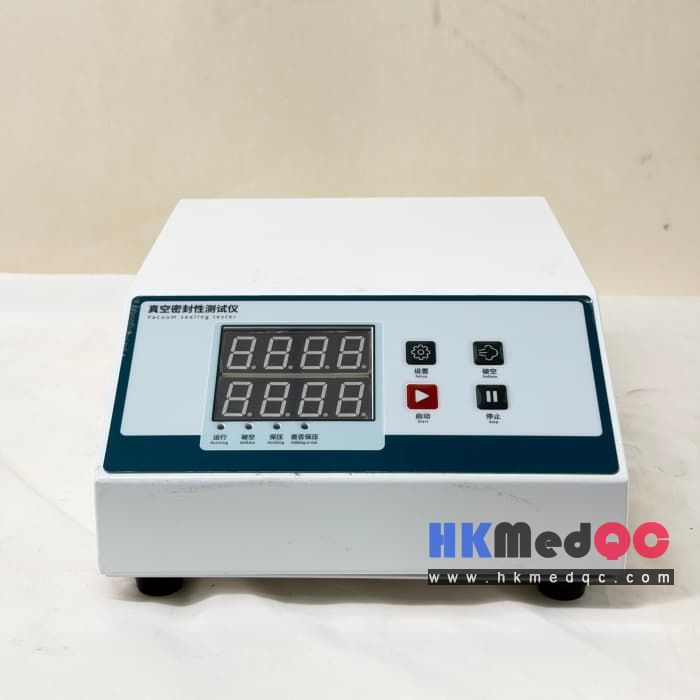

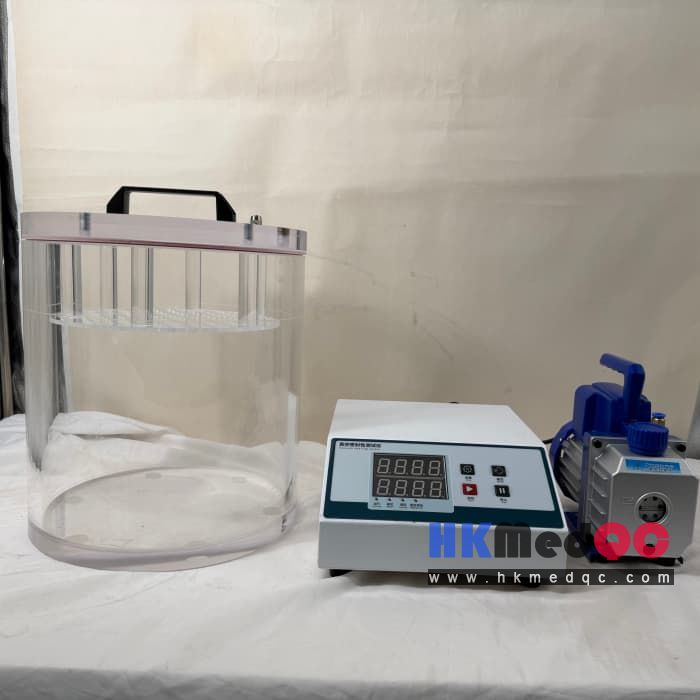

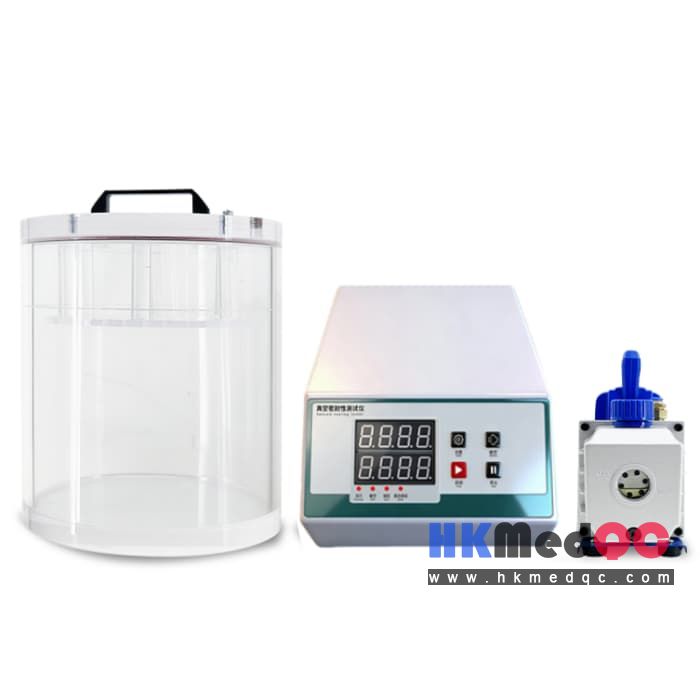

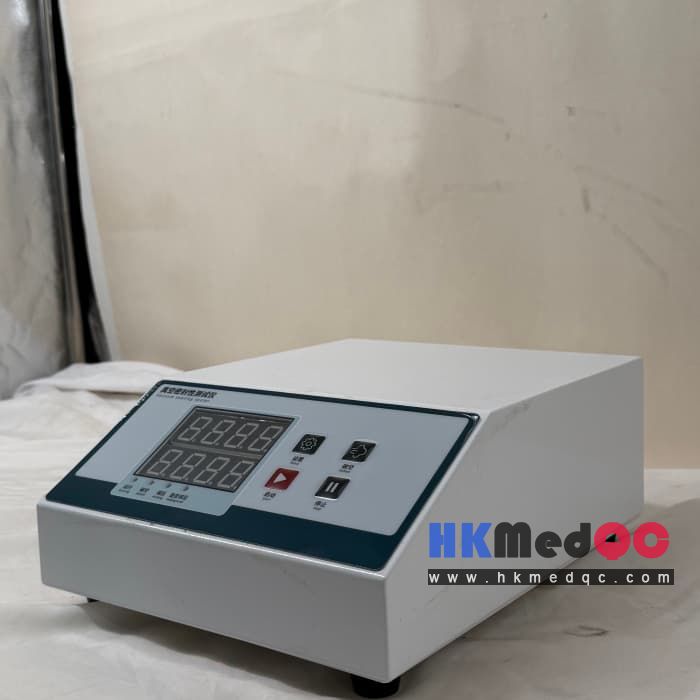

HKM-STA01 Sealing Test Instrument (Push-button Version) Product Picture:
