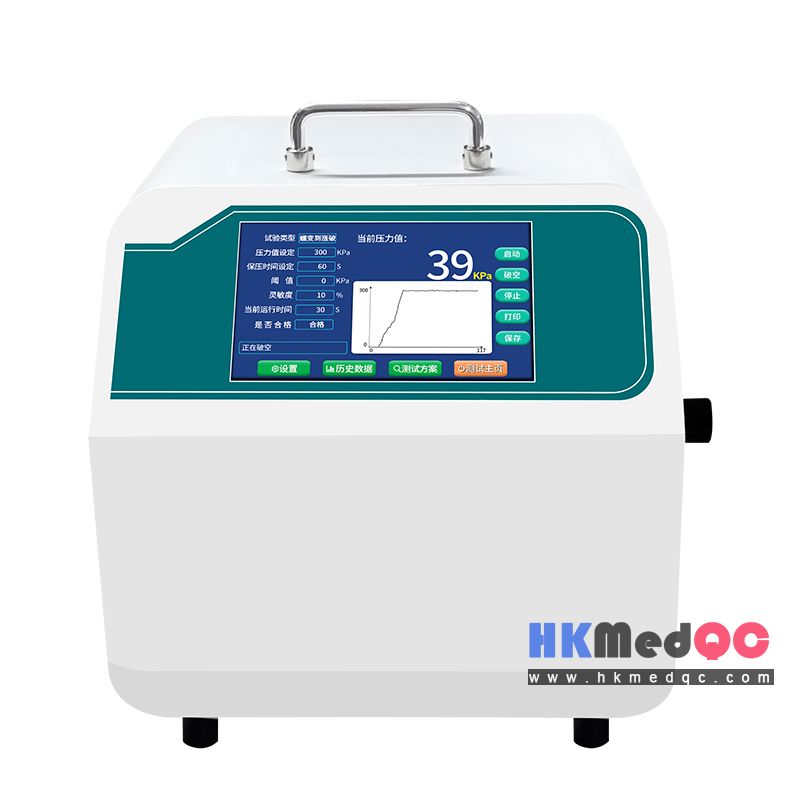

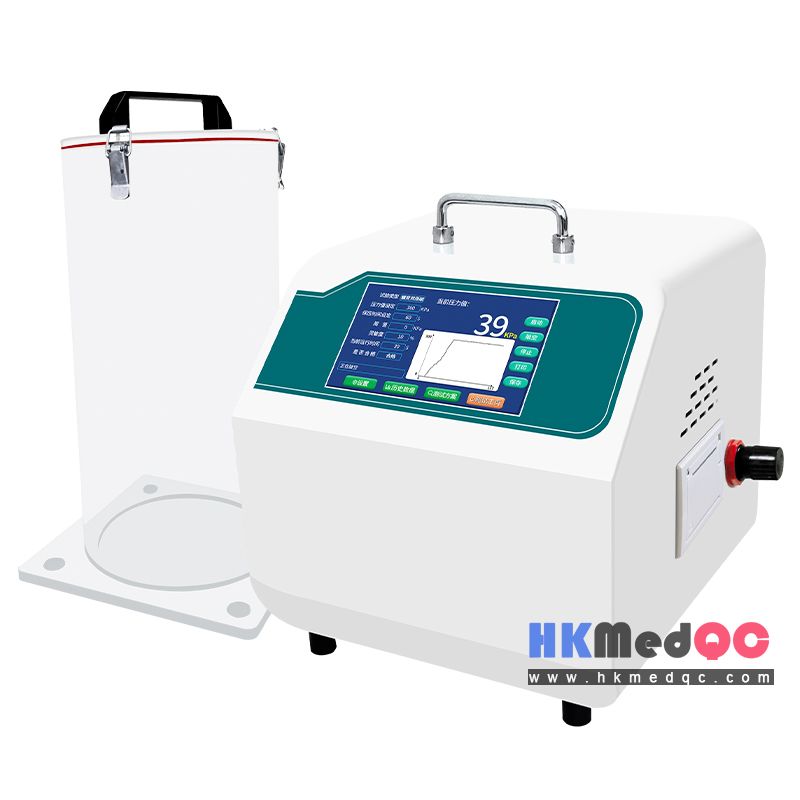

HKM-STZ01 Vacuum Leak Tester,Positive Pressure,Packaging Bag Type
Mode：HKM-STZ01
Type:QA-Instruments
Contact： ken@hkmedqc.com
HKM-STZ01 Vacuum Leak Tester,Positive Pressure,Packaging Bag Type.PDF
The leakage and sealing strength tester is suitable for the quantitative determination of the sealing strength, heat sealing quality, overall burst pressure, internal pressure method for detecting large leaks, and sealing performance of various sealing edges formed by various heat sealing and bonding processes such as soft packaging bags, and medical device composite sterile packaging bags in YY/T0681. It also meets the quantitative determination of indicators such as GB17876 plastic anti-theft bottle caps, overall sealing performance of hoses, pressure resistance strength, cap body connection strength, burst strength, heat sealing edge sealing strength, and tie-stitch strength.
Test range: 0 - 500 kPa
Accuracy: 0.5 class
Air source pressure: 0.4 MPa - 0.9 MPa (Air source is provided by the user)
Air source interface: Ф8mm polyurethane tube
Power supply: AC 220V 50Hz
Net weight: 20 kg
Operating Voltage: 50Hz, AC220V
Pressure Range: 0-500KPa
Total Height of Test Chamber: 390mm
Bottom Dimensions of Test Chamber: 250mm×250mm
Effective Internal Dimensions of Test Chamber: Φ180mm×390mm
Measurement Time: ≤99999S (Time can be freely set)
Time Control Accuracy: 1s
Operating Environment: -20~500°C (Requires a 3-minute trial run when operating between -200°C and 00°C)
Air Source: User-supplied (air compressor)
Main Unit Weight: Approximately 20KG
Technical Features
1. The process of pressure control, pressure maintenance, timing, and pressure relief test can be operated "in one step" with intelligent control, resulting in high test efficiency.
2. The test range is selectable, with a wide range of test capabilities and broad application fields.
3. Dual test methods for expansion suppression and non-suppression.
4. Support for test accessories, flexible test modes, and compatibility with various types.
5. Uses imported pneumatic components from world-renowned SMC, ensuring long-lasting performance, stability and reliability.
According to the standard:
GB 10440、GB 18454、GB 19741、GB 17447、ASTM F1140、ASTM F2054、ISO 11607-1、ISO 11607-2、GB/T 17876、GB/
T 10004、GB/T 10005、GB/T17590、 BB/T 0003、BB/T 0025、QB/T 1871、YY/T0681、YBB00252005、YBB00162002
Product Model:HKM-STZ01
Technical indicatorsTest range: 0 - 500 kPa
Accuracy: 0.5 class
Air source pressure: 0.4 MPa - 0.9 MPa (Air source is provided by the user)
Air source interface: Ф8mm polyurethane tube
Power supply: AC 220V 50Hz
Net weight: 20 kg
Product Model:HKM-STZ02C
Main Unit Dimensions: 300×300×300mmOperating Voltage: 50Hz, AC220V
Pressure Range: 0-500KPa
Total Height of Test Chamber: 390mm
Bottom Dimensions of Test Chamber: 250mm×250mm
Effective Internal Dimensions of Test Chamber: Φ180mm×390mm
Measurement Time: ≤99999S (Time can be freely set)
Time Control Accuracy: 1s
Operating Environment: -20~500°C (Requires a 3-minute trial run when operating between -200°C and 00°C)
Air Source: User-supplied (air compressor)
Main Unit Weight: Approximately 20KG
Technical Features
1. The process of pressure control, pressure maintenance, timing, and pressure relief test can be operated "in one step" with intelligent control, resulting in high test efficiency.
2. The test range is selectable, with a wide range of test capabilities and broad application fields.
3. Dual test methods for expansion suppression and non-suppression.
4. Support for test accessories, flexible test modes, and compatibility with various types.
5. Uses imported pneumatic components from world-renowned SMC, ensuring long-lasting performance, stability and reliability.
According to the standard:
GB 10440、GB 18454、GB 19741、GB 17447、ASTM F1140、ASTM F2054、ISO 11607-1、ISO 11607-2、GB/T 17876、GB/
T 10004、GB/T 10005、GB/T17590、 BB/T 0003、BB/T 0025、QB/T 1871、YY/T0681、YBB00252005、YBB00162002
Customization can be selected as per your needs. Please contact me.
