MS410 ECG Patient Simulator,Handheld ECG Simulator
Mode：MS410
Type:QA-Instruments
Contact： ken@hkmedqc.com

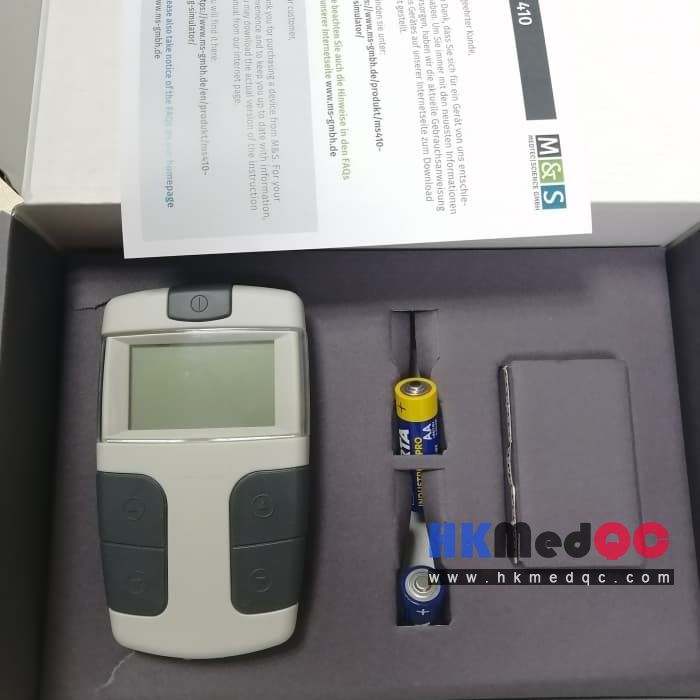

MS410 ECG patient simulator. The MS410 ECG simulator is a new generation of ECG simulator: compact, convenient, digital. It can not only simulate normal and pathological beating types, but also simulate the "artificial" beating types as stipulated in the IEC/EN60601-2-25/Annex GG standard.
To demonstrate ECG devices or ECG display systems
For education and training purposes
6 beat series, with 114 beat types according to the standard.
The typical selection of normal and pathological beat types provides you with a mixed program that can offer different ECG forms for over 20 minutes.
The beat series and beat types are displayed and selected on the screen.

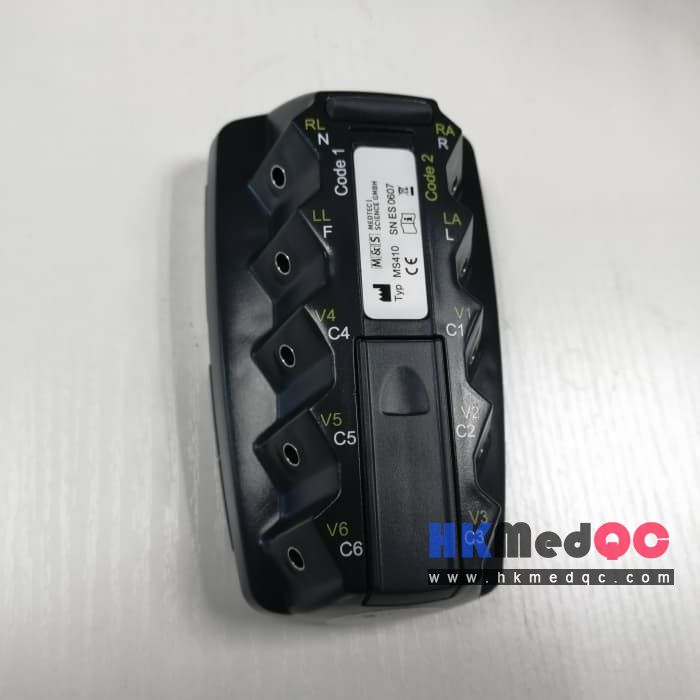

The device to be checked or displayed is connected to the MS 410 through 10 electrode plugs (banana plugs). The patient cable with electrode clips can also be connected through button contacts. The button contacts are provided as an accessory.
For example:
For functional testing in development and productionTo demonstrate ECG devices or ECG display systems
For education and training purposes
The MS 410 offers the following beat series:
6 pulse series, featuring 37 normal and pathological beat types6 beat series, with 114 beat types according to the standard.
The typical selection of normal and pathological beat types provides you with a mixed program that can offer different ECG forms for over 20 minutes.
The beat series and beat types are displayed and selected on the screen.
The device to be checked or displayed is connected to the MS 410 through 10 electrode plugs (banana plugs). The patient cable with electrode clips can also be connected through button contacts. The button contacts are provided as an accessory.
1.German original signal solution, waveform accurately restored
High fidelity replication of electrocardiogram signals, stable output, good consistency, in line with medical electrocardiogram measurement standards. The test data can be used to issue formal calibration reports, meeting annual inspection and on-site inspection compliance requirements.2.Built-in complete electrocardiogram waveform library
Includes normal sinus rhythm, premature beats, atrial fibrillation and other common types of arrhythmia waveforms; heart rate and waveform amplitude can be freely adjusted, covering all items of daily calibration and abnormal waveform function verification.3.Handheld and portable, suitable for on-site inspection

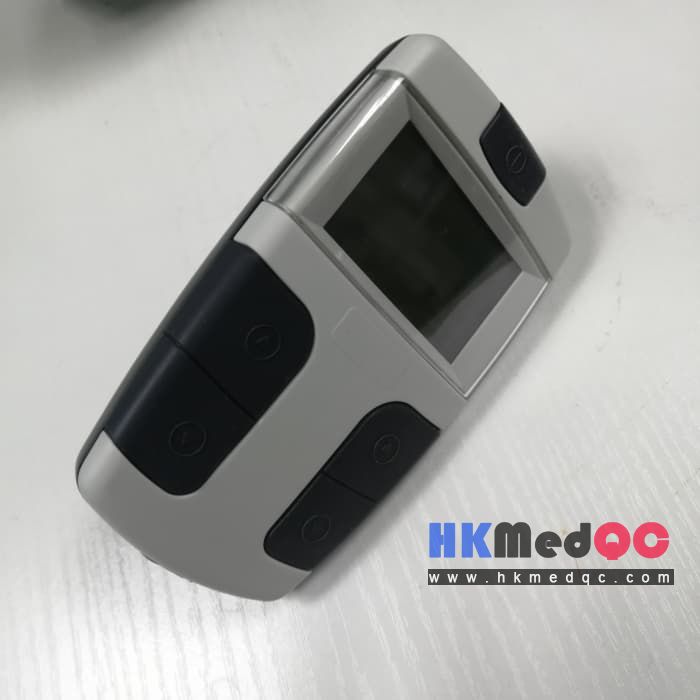

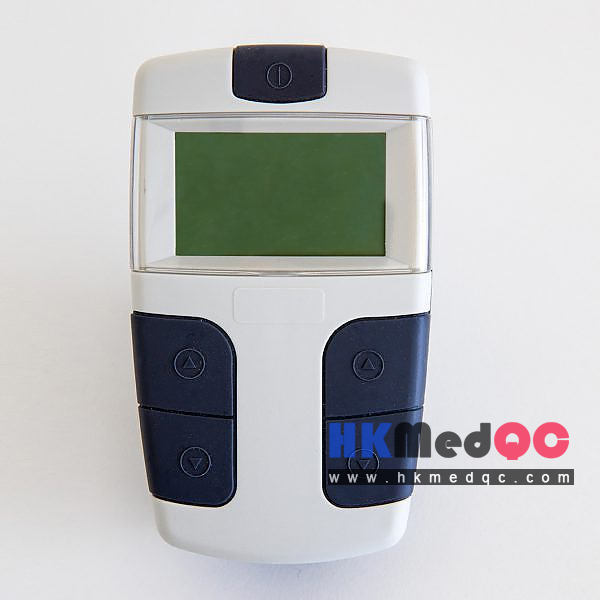

The entire machine is lightweight and equipped with a display screen and physical buttons, making it convenient for engineers to carry to the ward or department for detection. It is compatible with on-site maintenance and on-site measurement scenarios.4.Universal lead adapted to all brands of equipment
Supports conventional 3-lead and 5-lead standard electrocardiogram connection methods, compatible with all brands of electrocardiogram machines, bedside monitors, 24-hour dynamic electrocardiogram, exercise treadmill, defibrillation equipment.5.Simple operation and easy to use
The screen parameters are intuitive, one-click switch waveform, adjust heart rate, no need for complex debugging, medical engineers can easily operate after simple training.6.Long battery life, suitable for high-frequency use
Low power consumption design, long battery life, suitable for factory production line batch continuous detection, hospital daily high-frequency inspection, stable performance in long-term use.
