MagicMax Universal Multi-Functional X-Ray Test,Medical Radiology QA Calibration
Mode：MagicMax
Type:QA-Instruments
Contact： ken@hkmedqc.com
MagicMax Universal Multi-Functional X-Ray Test,Medical Radiology QA Calibration.PDF

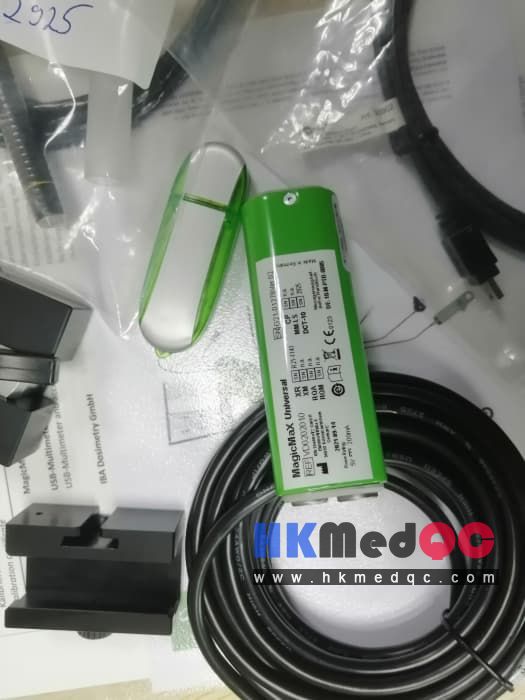

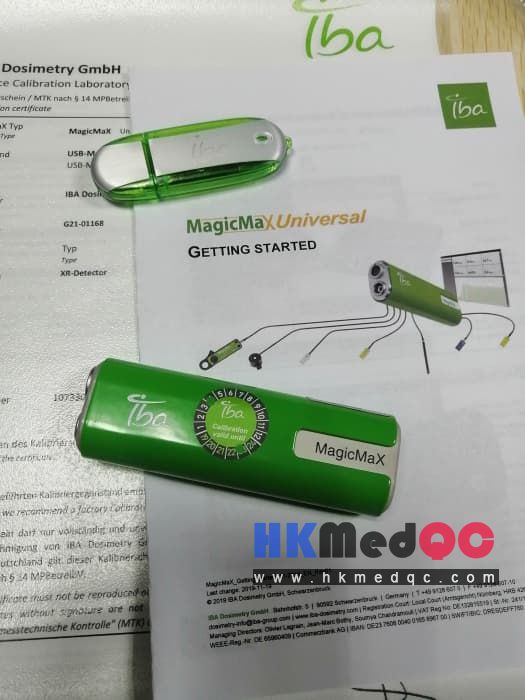

Original IBA MagicMax Universal is an all-in-one portable X-ray quality control detector. It simultaneously measures kVp, mA, mAs, exposure time, air kerma dose, dose rate, HVL half-value layer for diagnostic X-ray equipment.
Product Introduction of German IBA MagicMax Universal X-ray Tester
1. Applicable for evaluating various X-ray machines, including: CT machines, radiography machines, fluoroscopy machines, pulsed fluoroscopy machines, portable X-ray machines, etc.2. The data that can be measured in a single exposure include kVp, PPV, dose, dose rate, exposure time, HVL, and total filtration.
3. Offer free data storage and analysis software randomly, and provide customizable user reports.
Product features of the German IBA MagicMax Universal X-ray tester

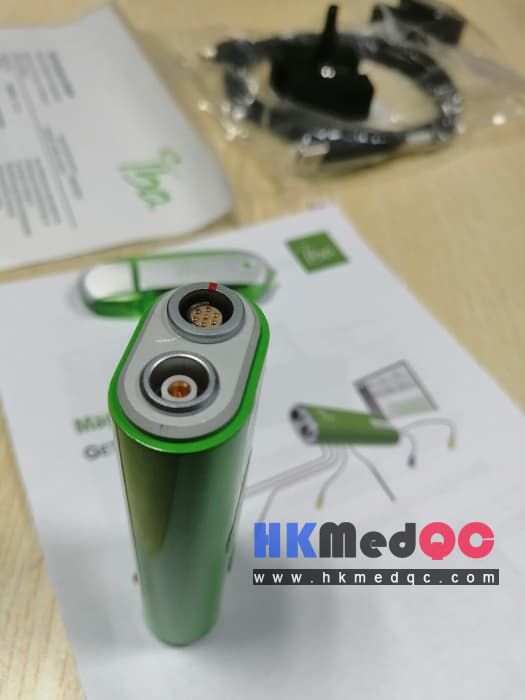

1. It has an external dual-channel detector interface, allowing for the addition of a second channel dose detector simultaneously.2. The data transmission application is directly connected via a wired connection, employing high-speed data transmission technology. It can truly achieve a 0.1ms detection technology.
3. It can display the dose and kVp waveform in real time, facilitating analysis. The minimum resolution time of the waveform graph is 0.1 milliseconds.
The range and accuracy of the MagicMax Universal X-ray tester for the conventional X-ray machine and fluoroscopy system sections:
1. Voltage: 40 - 155 kV / ±2%2. Dose: 50 nGy - 50 Gy ± 5%
3. Dose rate: 0.1 µGy/s - 120 mGy/s / ±5% or ±0.02 µGy/s
4. Exposure time: 0.2ms - 999.9s
5. Rapid half-value layer: 1.3 - 10 mm Al / ±10% or 0.2 mm
6. Total filtration: 1.5 - 30 mm Al / ±10% or ±0.3 mm (60 - 120 kV.HF/DC)
MagicMaX General Specifications
High resolution: The highest resolution can reach 0.1 mm• All modes combined into one device: 21kV – 160kV (fully flexible detector, dual ports)
High dose measurement capability: 5nGy – 50 Gy
Complete detection of our full version MagicMax Universal Cases: Your complete solution covers all your needs for beam verification and image quality control – everything can be accomplished in one go.
• You can integrate the beam verification and image quality inspection process!
• Pre-set solutions, convenient and portable!

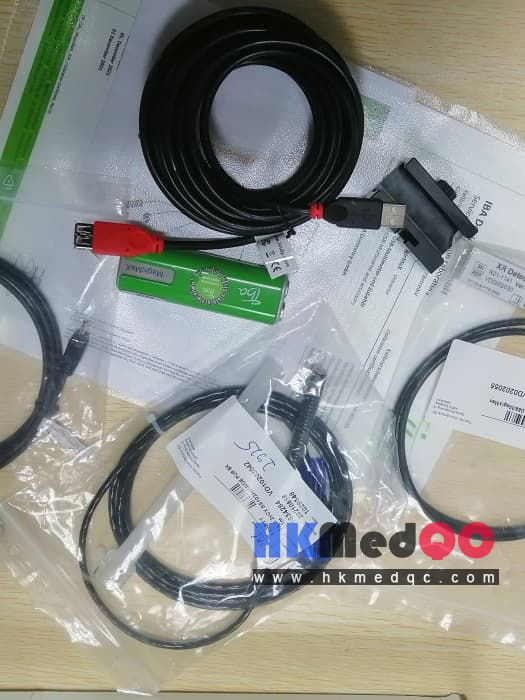

The USB-based system is used for desktops and laptops.
The MagicMax-Meter measurement softwareIncludes solid block microscopic trajectory multi-probe XR
Can attach additional solid block probes to measure dose
Includes a sturdy aluminum portable case
The dosimeter part is designed according to IEC 61674
The USB-based system is used for desktop computers and laptops.
The MagicMax-Meter measurement software
Includes a solid block dose probe RQA
Can attach additional solid block probes to measure input and output doses simultaneously
Includes a sturdy aluminum portable case
The USB-based system is used for desktops and laptops.
The MagicMax-Meter measurement software
Includes a sturdy aluminum carrying case
Contains a solid KV probe
MagicMax current probe
Perform non-invasive measurement of pipeline current using the MagicMax multimeter.
Conduct comprehensive analysis using the MagicMax-Meter software.Easily select the measurement range.
Advantages:
Integrated device
Effective solution
Convenient workflow
