Rigel Multi-Flo Multi-Channel Infusion Pump Analyzer,Flow Pressure Instrument

Rigel Multi-Flo Multi-Channel Infusion Pump Analyzer,Flow Pressure Instrument Details：

The Rigel Multi-Flo is a professional modular infusion pump analyzer made by Rigel Medical UK. With optional 1, 2 or 4 isolated test channels, it is designed for high-volume testing of infusion and syringe pumps.

Defining the market, the Rigel Multi-Flo Infusion Pump Analyzer is a portable instrument capable of accurately and rapidly validating the performance of all infusion devices.

The Rigel Multi-Flo Infusion Pump Analyzer offers ease of use, highly accurate readings, and productivity improvements from the outset.

By selecting single-channel or multi-channel configurations, Multi-Flo can simultaneously test up to four infusion devices ranging from 10 μL to 1500 mL/hour, with all results stored in a large memory. Even at low flow rates, Multi-Flo provides uniquely accurate and instantaneous flow measurements, enabling users to test twice as many infusion devices in the same amount of time as other volume-based analyzers.

To save even more time and reduce the risk of human error, Multi-Flo can also be programmed with manufacturer-specific test procedures, which users can then automate on the device, or using Med-eBase software solutions.

To meet the requirements of IEC 60601-2-24, Multi-Flo also provides accurate back pressure simulation, occlusion alarm monitoring, and push-boost (PCA) measurements, with a large color graphic display showing data in digital and graphical formats.

Through Rigel's Med-eBase test solution software, a remote (PC) control interface allows for complete PC control of Multi-Flo's functionality. Each Multi-Flo requires only one USB connection, and users can connect as many multi-channel Multi-Flos as possible, enhancing testing capabilities for high-volume testing environments due to the availability of USB ports.

Key Features

Multi-channel modular structure, independent operation per channel, maximize batch inspection efficiency.

Test items: flow volume, back pressure, bolus pulse and time error.

Full compliance with IEC 60601-2-24 international safety regulation for infusion devices.

Built-in data logger, paired with Med-eBase software for automated report generation.

Portable construction for on-site biomedical engineering inspection without moving medical devices back to lab.

The Rigel Multi-Flo infusion pump analyzer is easy to use.

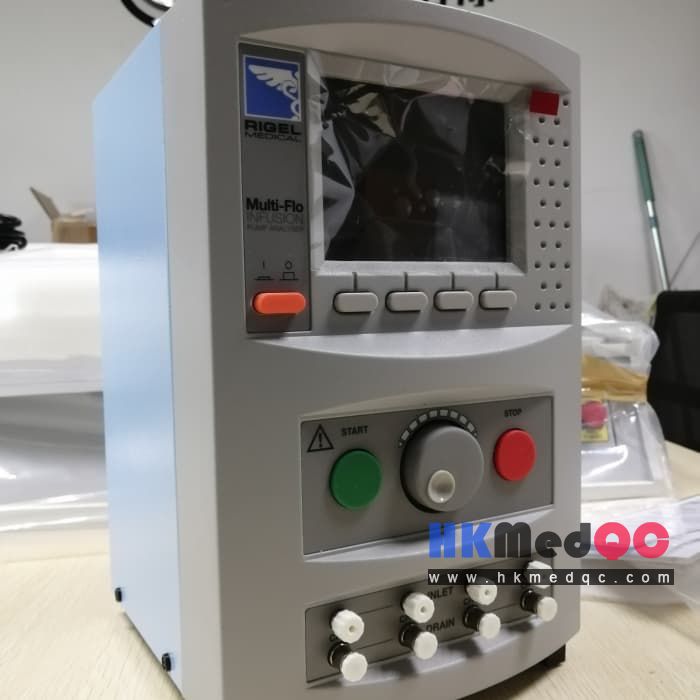

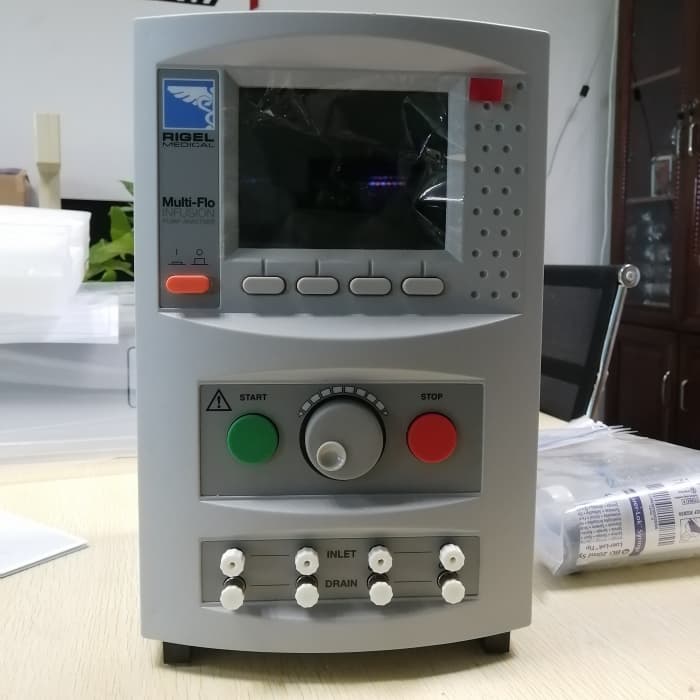

Its design allows for easy navigation using a large color display, simple button operation, and an intuitive menu-driven interface. A dedicated data focus area provides clear viewing of target data from distances exceeding 5 meters, offering flexibility in both field and workshop environments.

Control multiple Multi-Flo analyzers on a PC. Multi-Flo is compatible with Rigel Medical's Med-eBase testing solution software, enhancing productivity through a remote control interface.

Control as many Multi-Flo analyzers as there are USB ports on your PC using Med-eBase software, and use the PC screen as a dashboard to aggregate activity from each Multi-Flo analyzer. This means significantly increased testing capacity in high-volume testing environments.

Comprehensive Data Management for the Rigel Multi-Flo Infusion Pump Analyzer:

Med-eBase software allows for the rapid and convenient generation of real-time and high-resolution graphs, including small curves, storage of test data, and creation of instrument certificates. Med-eBase establishes a complete historical record for each asset, from testing and inspection to record management and certification.

Introduction to Rigel Multi-Flo Infusion Pump Analyzer Infusion Pump Testing:

Rigel Medical's free guide covers the principles of infusion pump testing, including: Infusion Types, Infusion Characteristics, Infusion-Related Issues, and Testing Infusion Devices.
