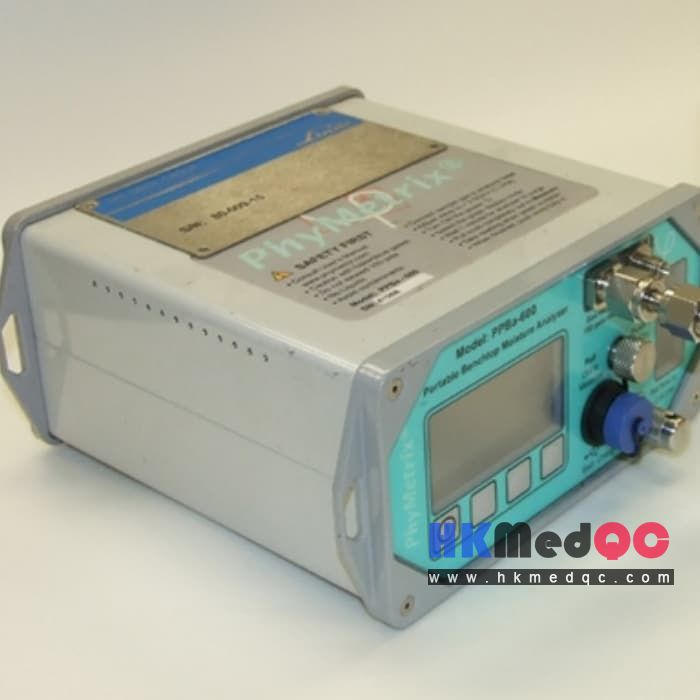

USA PhyMetrix PPBa Benchtop Dew Point Analyzer,PPBa-600 Portable Moisture Tester
Mode：PPBa-600
Type:QA-Instruments
Contact： ken@hkmedqc.com
USA PhyMetrix PPBa Benchtop Dew Point Analyzer,PPBa-600 Portable Moisture Tester.PDF
The PhyMetrix PPBa bench-top dew point analyzer, the PPBa-600 dew point meter, is a field dew point analyzer produced using the most advanced nano-mesh metal oxide film dew point sensor. It can accurately and quickly measure the moisture content of gases within the dew point temperature range of -110℃ to +20℃.
Application
Natural Gas & Petrochemical, Power Plant SF6/Hydrogen Cooling Test, High Purity Industrial Gas(Argon/Oxygen/Nitrogen), Heat Treatment Furnace Gas, Compressed Air Dryer Inspection

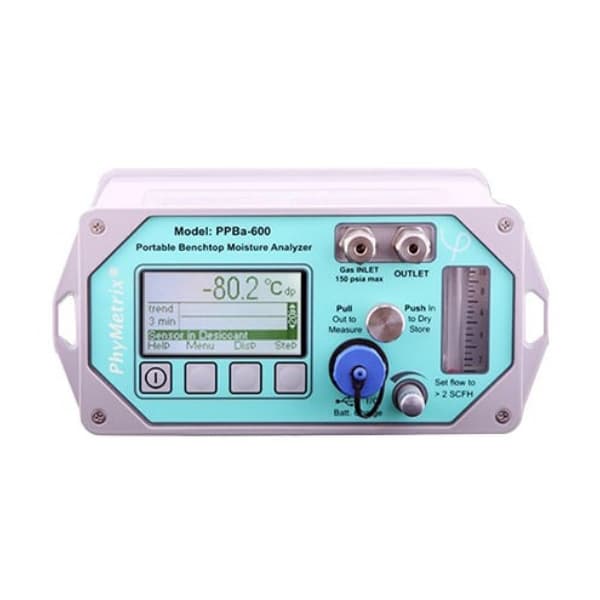

PhyMetrix PPBa Desktop Dew Point Analyzer, PPBa-600 Dew Point Meter Product Physical Picture:
If you are interested in the product, please contact me.
PhyMetrix PPBa Desktop Dew Point Analyzer, the features of the PPBa-600 dew point meter:
● Lightweight and portable, also suitable for desktop use
● Programmable data recording
● Powered by rechargeable long-life lithium battery
● With USB data output, optional 4-20mA current output
● Optional PVA simulation software to simulate the operation of the instrument on a PC
● Multiple parameter display: °C (dp), F (dp), ppmV, ppmW, uB water vapor pressure, grams per cubic meter, LBS, etc., BS, etc.
Continuous state and diagnostic display
Optional pressure sensor with automatic dew point correction function
Built-in metering valve and flow meter
Optional built-in vacuum pump, suitable for samples below atmospheric pressure
On the ~ screen histogram and trend chart
USB data interface, also for battery charging
-110°C to + 20°C dew point sensor
Fast, accurate and repeatable
Built-in temperature compensation
Most advanced electronic products and software
Advanced user-friendly interface
Product feature:
Specification
Product feature:
- Original American nano-microporous metal oxide film sensor, dew point range -110℃ to +20℃, measurement accuracy ±2℃, repeatability ≤0.8℃; 95% of the range is responded within 3 minutes, it comes with a temperature compensation algorithm to eliminate environmental temperature drift, meeting precise detection of trace moisture in high-purity gases at ppb/ppm level.
- The entire machine integrates a precise regulating valve + flowmeter, the inlet pressure can reach up to 2000 PSI, the outlet pressure is 50 PSI, no need for an external pressure reducing valve; optional built-in vacuum pump for negative pressure gas sampling, optional pressure module (2-150PSIA/316 stainless steel) for automatic pressure compensation, simultaneously display compensated / un-compensated dual dew point values.
- Desktop / portable dual-purpose model, the entire machine weighs only 1.6kg, aluminum alloy casing with IP65 protection; high-definition backlit LCD, real-time histogram + trend curve for intuitive viewing of moisture fluctuations, keys with operation prompt sounds, fault sound and light alarms, built-in help guide for quick parameter setting.
- Multiple units can be freely switched: dew point ℃/℉, volume ppm, weight ppm, grams/cubic meter, natural gas pound-standard cubic; with clock calendar, programmable cycle data storage, USB direct connection to computer to export reports; optional 4-20mA/HART, RS485 communication for connecting to DCS system, enabling remote data upload.
- Fully liquid-contact 316 stainless steel + PTFE anti-corrosion material, the body has a built-in desiccant compartment, the sensor can be stored and protected when the machine is not in use; factory-provided NIST traceable calibration certificate, supports instrument customization calibration.
Specification
| Mode:PPba-600 |
| Dew Point Measuring Range：-110℃ ~ +20℃ |
| Measurement Accuracy：±2℃(temp corrected) |
| Repeatability：≤0.8℃ |
| Response Speed：95% full range within 3min |
| Built-in Flow：＞1LPM |
| Pressure Sensor(Optional)：2~150PSIA ±1%，316SS |
| Inlet Max Pressure：2000PSI(137bar) |
| Working Ambient：-20℃~+60℃ |
| Power：Built-in rechargeable lithium battery + external DC adapter |
| Dimension：199×162×84mm；Net Weight：1.6kg |
| Wetted Parts：316L Stainless Steel + PTFE |
| Certification：NIST Traceable Calibration Certificate |
Application
Natural Gas & Petrochemical, Power Plant SF6/Hydrogen Cooling Test, High Purity Industrial Gas(Argon/Oxygen/Nitrogen), Heat Treatment Furnace Gas, Compressed Air Dryer Inspection

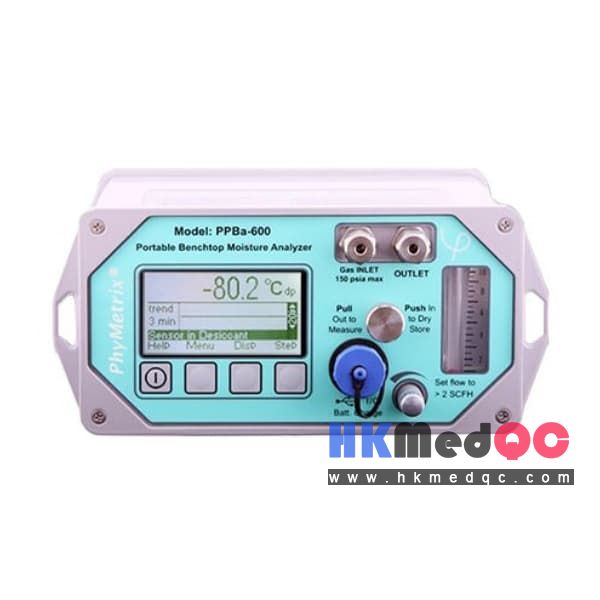

PhyMetrix PPBa Desktop Dew Point Analyzer, PPBa-600 Dew Point Meter Product Physical Picture:
FAQ
|
Q1 ：Does PPBa come with NIST calibration certificate? |
|
A1 ：Yes, every unit is pre-calibrated at factory with NIST traceable report, meets international metrology standard for third-party laboratory inspection. |
|
Q2 ：Can test low-pressure vacuum gas? |
|
A2 ：Optional built-in brushless vacuum pump(max -50kPa vacuum), applicable for below-atmosphere gas sampling without external vacuum source. |
|
Q3 ：Is data export available for lab report? |
|
A3 ：Built-in datalog function, USB connect PC to download historical data; optional 4-20mA output links factory DCS system for online monitoring. |
If you are interested in the product, please contact me.
