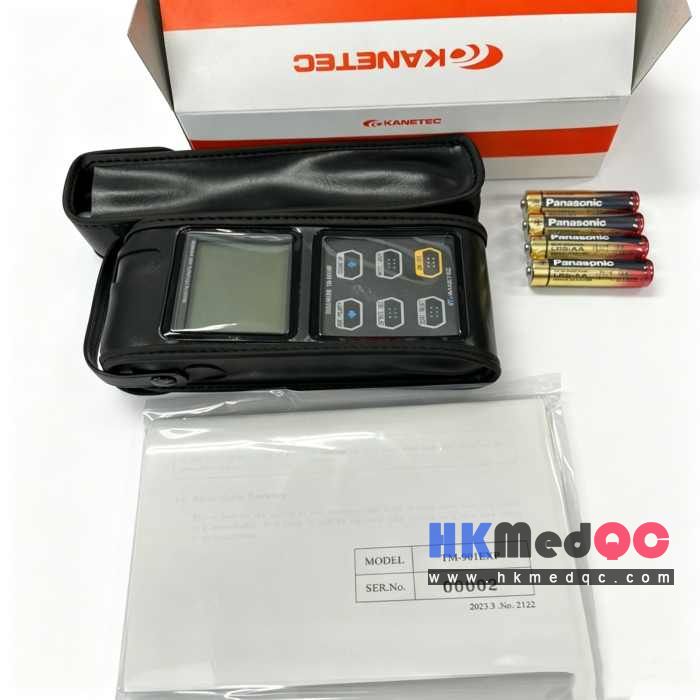

KANETEC Handheld Tesla Meter,TM-901EXP,Magnetic flux meter
Mode：TM-901EXP
Type:QA-Instruments
Contact： ken@hkmedqc.com
KANETEC Handheld Tesla Meter,TM-901EXP,Magnetic flux meter.PDF
Key features of the Japanese powerful KANETEC TM-901EXP gaussmeter:
The TM-901EXP is an upgraded replacement model of the TM-801EXP gaussmeter. The probes of the old and new models are compatible.
It adds a screen backlight function, making it easy to observe even in dim conditions.

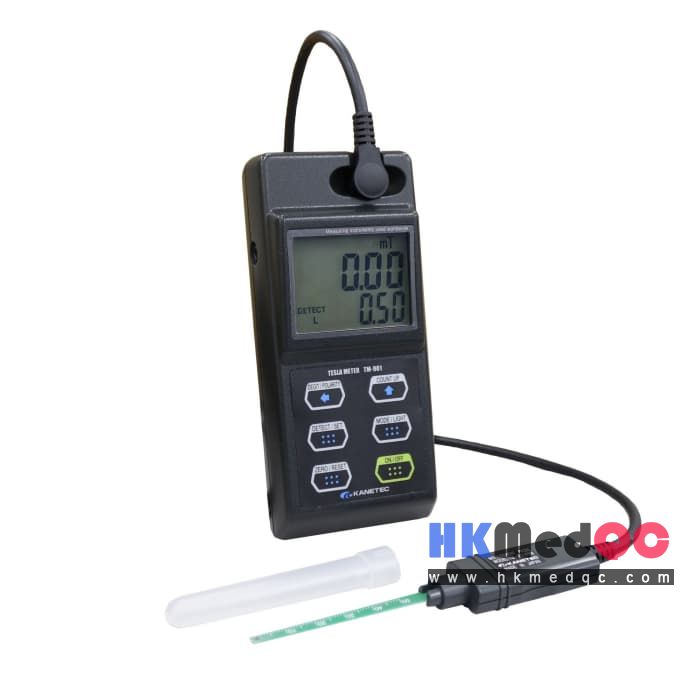

The powerful TM-901EXP gaussmeter has a larger screen, allowing for the simultaneous display of "REAL real-time measurement values" and "PEAKHOLD peak values".
The measurement probe can be replaced and installed without the need for cumbersome calibration. The standard probe is TIM-901PRB horizontal type.
An axial type probe TM-901AXL can be purchased for vertical measurement and high durability. It adds "Detection Mode (lower and upper limit value setting). When the value is within the set range during measurement, it will notify through a beep* The beep is only effective in the DC direct current magnetic flux density measurement mode and cannot respond to the AC alternating current mode.
The probe shape becomes flat, facilitating fixation and can be used for automatic measurement and other operations.
It supports dry battery and USB power supply. Data can be output to a computer via USB (Type C) connection to achieve digital output.
It is applied to measuring the magnetic field strength of household appliances, residual magnetic force of workpieces, material magnetization level, and flux density management, etc.
Real-time and peak display:
It simultaneously displays the "REAL (real-time value)" and "PEAK HOLD (peak)" values of the magnetic flux density, facilitating users to capture and record key data.
New screen background light:
Equipped with a manually adjustable screen background light, it enhances readability and operational convenience in low-light environments.
User-defined detection mode:
Users can set the measurement range of magnetic flux density as needed, and a prompt sound will be emitted within the set range (applicable only to the DC mode).
Multiple power supply options:
Supports dry batteries (4 x 1.5V AA batteries) and USB power supply, ensuring stable operation in various environments.
Compatibility:
The probes TM-901PRB and TM-901AXL are compatible with the previous Gaussian meters (such as TM-501, TM-601, TM-701, TM-801), making it convenient for users to upgrade and replace them.
TM-901EXP Specifications
| Item | Specification |
|---|---|
| Model | TM-901EXP |
| Detection Target | DC Magnetic Flux Density (Polarity N/S) / AC Magnetic Flux Density 40-500Hz |
| Measurement Unit | mT / G switchable |
| Measuring Range | 0 ~ 3000.0 mT |
Measuring Mode, Range, Resolution & Accuracy
| Mode | Measuring Range | Resolution | Indication Accuracy |
|---|---|---|---|
| DC×1 | 0 ~ 2000.0 mT | 0.1 mT | ±(5% of rdg. + 3 digit) |
| DC×1 | 200.0 ~ 3000.0 mT | 1 mT | ±(5% of rdg. + 10 digit) |
| DC×10 | 0 ~ 3000.0 mT | 0.01 mT | ±(3% of rdg. + 5 digit) |
| AC* | 0 ~ 150.0 mT | 0.01 mT | — |
| AC* | 150.1 ~ 300.0 mT | 0.1 mT | ±(5% of rdg. + 20 digit) |
| AC* | 300.1 ~ 1500.0 mT | 1 mT | — |
Functions & Other Specifications
| Item | Details |
|---|---|
| Functions | Zero Reset, Peak Hold, Polarity Judgment, Auto Power Off (cancelable) |
| External Output | Digital Output (USB) / Analog Output |
| Display | Measured Value: Digital Display; Polarity: Letter Display (N/S) |
| Operating Temperature | 0 ~ +40°C (104°F) |
| Power Supply | 4 × AA Batteries (1.5V) / External DC 5-6V / USB Power |
| Dimensions | 143mm (L) × 64mm (W) × 36mm (D) |
| Weight | Approx. 250g (including battery & standard probe) |

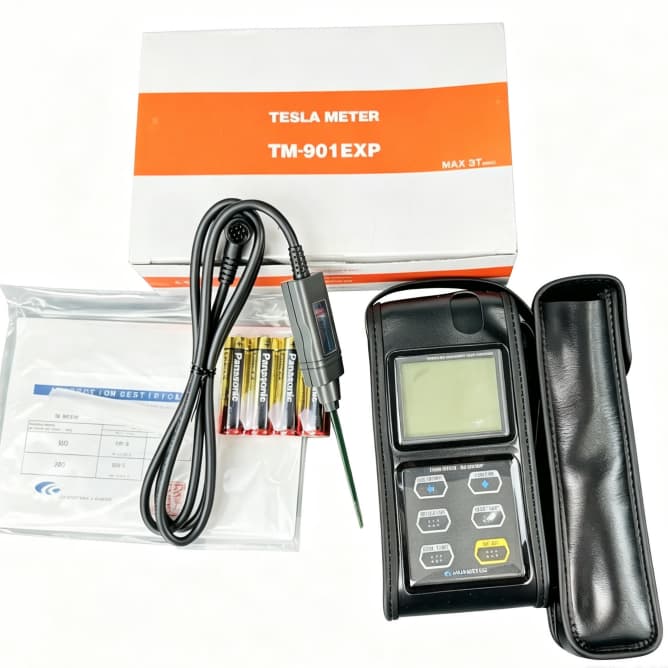

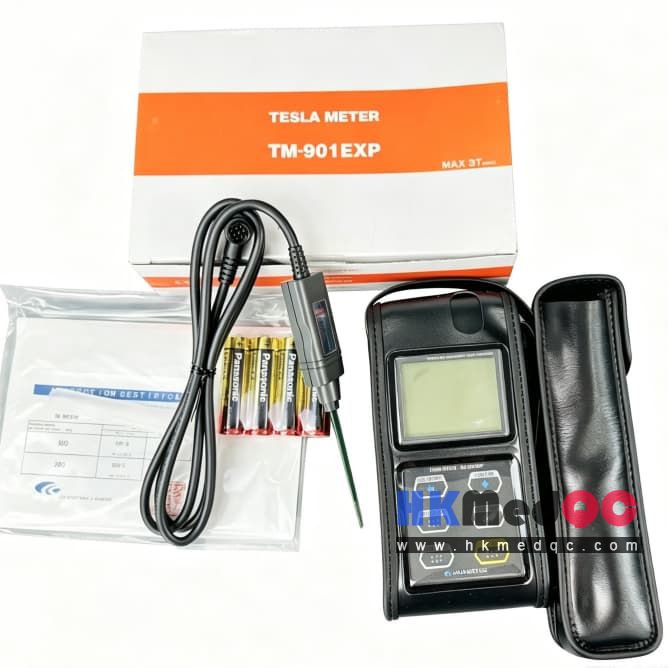

| Standard Accessories | TM-901PRB Standard Probe, Batteries, Carrying Pouch |
| Optional Accessories | TM-901AXL Axial Probe, Magnetic Force Comparison Block (TM-SMF, TM-AMF) |
Product Applications:
1. Measure the residual magnetic force of workpieces after mechanical processing, measure the residual magnetic force of workpieces after using a demagnetizer, and measure the residual magnetic force of formed products by stamping.
2. Manage the magnetic flux density of sanitary magnets.
3. Measure the properties of magnetic materials.
4. Confirm the magnetization level of magnetic materials.
5. Measure the magnetic flux density of magnetic tools.
6. Measure and inspect, develop for applications of AC magnetic products.
