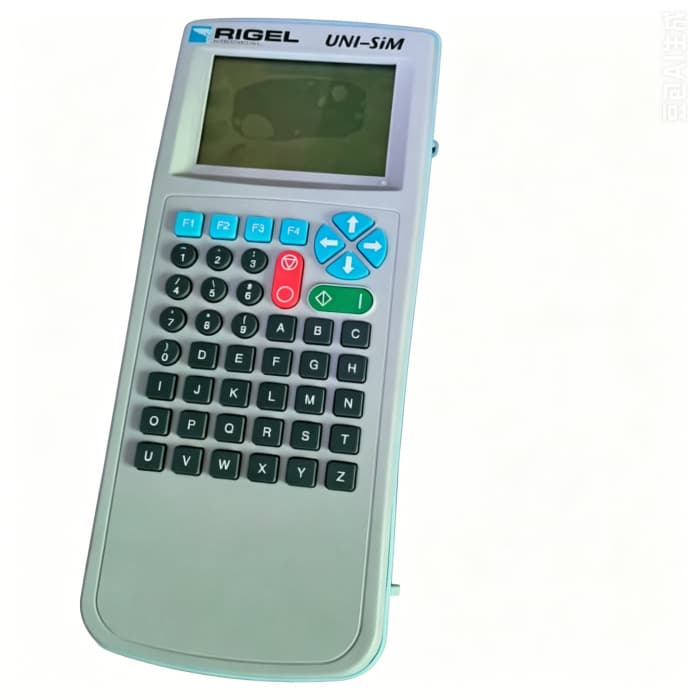

Rigel UNI-SiM 6-in-1 Vital Signs Patient Simulator,NIBP SpO2 ECG Tester

Rigel UNI-SiM 6-in-1 Vital Signs Patient Simulator,NIBP SpO2 ECG Tester Details：

Rigel UNI-SiM handheld vital sign simulator from the UK is a 6-in-1 synchronous signal generator. It can simultaneously output six physiological signals - non-invasive blood pressure, blood oxygen, electrocardiogram, body temperature, invasive pressure, and respiration - in one go. It is battery-powered and portable, meeting the daily calibration and quality control requirements of hospital equipment departments and third-party metrology institutions for monitoring devices.

The Rigel UNI-SiM vital sign simulator is the world's first battery-powered six-in-one vital sign simulator, capable of conducting six simultaneous vital sign parameter tests.

The Rigel Uni-Sim life vital signs simulator can quickly, simply and accurately simulate NiBP, SpO2, ECG, temperature, IBP and respiratory functions. It is one of the most valuable tools available today.

In the SPO2 and NIBP simulations, new advanced technologies are utilized to reduce errors and minimize the testing time to the greatest extent. Manufacturer-specific simulation curves can be created and uploaded to further enhance accuracy.

The Bluetooth connection with various attachments and Med-eBase (a comprehensive database software) ensures that test results can be downloaded quickly and easily, the asset database can be managed, test sequences can be created, and test certificates can be generated.

Rigel UNI-SiM 6-in-1 Vital Signs Patient Simulator,NIBP SpO2 ECG Tester

Rigel UNI-SIM Vital Signs Simulator Complete Technical Specifications

Non-Invasive Blood Pressure (NIBP)

Parameter	Specification
Simulation Waveform	Oscillometric
Integrated Pump	0 to 350 mmHg, user-configurable
Leak Test	User-configurable between 0-350 mmHg
Timer	Configurable up to 999 seconds
Digital Manometer	0 - 410 mmHg
Pressure Accuracy	+/- 0.5% Full Scale (FS)
Supported Pressure Units	mmHg, inHg, kg/cm², cmH₂O, mBar, PSI, inH₂O, kPa

Oxygen Saturation (SpO₂)

Parameter	Specification
Measurement Range	50 to 100%
Heart Rate Accuracy	±1 bpm
Timer Function	Test option for SpO₂ monitor response time verification

Electrocardiogram and Arrhythmia Simulator (ECG)

Parameter	Specification
ECG Configuration	5-lead with advanced output capability
Basic Waveforms	Normal Sinus Rhythm (NSR), ST Elevation, ST Depression, Myocardial Infarction, Tall T-wave
Heart Rate Range	20 - 300 BPM, value input supported
Performance Waveforms	Sine, Square, Triangle, Pulse
Pacemaker Waveforms	Synchronized Atrial, Asynchronous Atrial
Standalone Pacemaker Modes	Pacemaker pulse rate 60 BPM, ventricular pacing rate 70 BPM, atrial & ventricular pacemaker heart rate 70 BPM, R-wave detection
Atrial Arrhythmia Waveforms	Sinus Arrhythmia (SA), Dropped Beats, Atrial Flutter (AFLT), Atrial Fibrillation (AFB), Paroxysmal Atrial Tachycardia (PAT), Junctional Premature Beats
Atrioventricular Conduction Abnormalities	1st Degree AV Block, 2nd Degree AV Block - Mobitz Type I, 2nd Degree AV Block - Mobitz Type II, 3rd Degree AV Block, Right Bundle Branch Block (RBBB), Left Bundle Branch Block (LBBB), Left Anterior Fascicular Block
Ventricular Arrhythmia Waveforms	Premature Ventricular Contractions (PVCs) - Intermittent, PVCs - Continuous, Bigeminy, Trigeminy, Ventricular Flutter (VFLT), Ventricular Fibrillation (VFB), Ventricular Tachycardia (VTC), Right Ventricular Outflow Tract PVCs

Temperature Simulation (TEMP)

Parameter	Specification
Simulation Mode	YSI 400/700 static simulation
Preset Temperature Values	25°C, 33°C, 37°C, 41°C

Respiratory Simulation (RESP)

Parameter	Specification
Respiratory Rate Options	5, 10, 15, 30, 60, 120, 180 breaths per minute
Baseline Impedance Options	250, 500, 750, 1000 ohms
Apnea Simulation	0 - 60 seconds duration, 0 - 300 seconds interval

Invasive Blood Pressure (IBP)

Parameter	Specification
Number of Channels	2 channels
Static Pressure Range	0 to 300 mmHg, value input supported
Dynamic Pressure Range	0 - 300 mmHg (systolic and diastolic pressure)

General System Parameters

Operation Mode: Powered by a built-in rechargeable battery. Can operate independently without power supply.

Charger Specifications: 110-230VAC, 50/60Hz - universal voltage worldwide.

Battery Life: 4 to 24 hours (varies depending on the simulation mode)

Storage Capacity: Can store approximately 10,000 test records, facilitating batch detection and traceability

Communication Method: Bluetooth wireless data transmission, supporting computer online export of reports

Display: Monochrome 1/4VGA full graphic high-definition display, visual parameter operation

Operation Keyboard: Full alphanumeric keys, convenient and efficient parameter setting

Overall Weight: < 1.5kg

Body Dimensions: 270×110×75mm

Operating Environment: Temperature 10~30℃, humidity 0~90%RH (no condensation)

Storage Environment: -15℃ ~ +60℃

Protection Grade: IP40
