Equipped with a unique high-power low-inductance load bank, this analyzer supports performance testing up to 8A RMS with a 100% maximum duty cycle. It is a highly versatile instrument for calibrating and testing both standard and high-power electrosurgical generators.

The load resistance ranges from 0Ω to 5115Ω with over 1,000 resolution steps, delivering highly detailed power profile curves.

The Rigel Uni-Therm also prioritizes operational safety: all required resistive components are enclosed within a single housing.

Fully Automated ESU Performance Testing

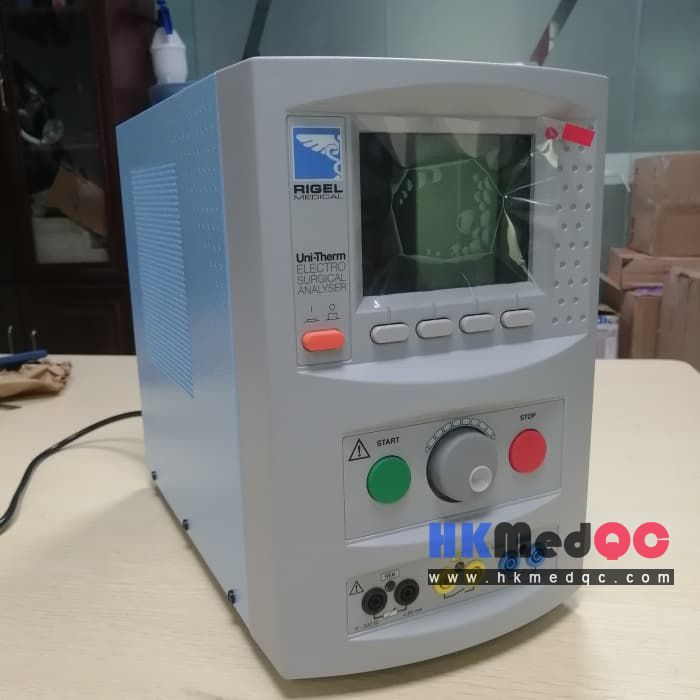

The compact Rigel Uni-Therm automates all routine tests for electrosurgical units, greatly cutting down test time for biomedical engineers, hospital QC labs and third-party calibration institutions.

High-Current & Precise Non-Inductive Load
Supports up to 6 Ampere RMS high-current testing. Built-in non-inductive load bank ranges from 0 to 5115Ω, ensuring stable and accurate high-frequency measurement results.

Full IEC Leakage Compliance Test
Covers all leakage current tests required by IEC 60601-2-2 medical safety standard, meets global hospital equipment quality control and metrology calibration requirements.

On-Screen Graph & Data Logging
Full-color LCD shows real-time power profile curve analysis. Onboard automatic test sequence and data capture function make test records traceable and exportable easily.

Intuitive Full-Color Operation Interface
User-friendly color graphic UI with physical start/stop buttons. Small footprint design saves bench space, ideal for lab and on-site field testing.
