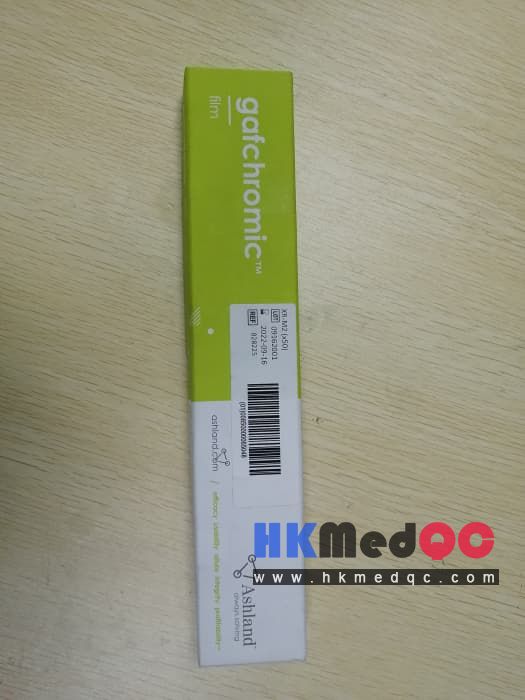

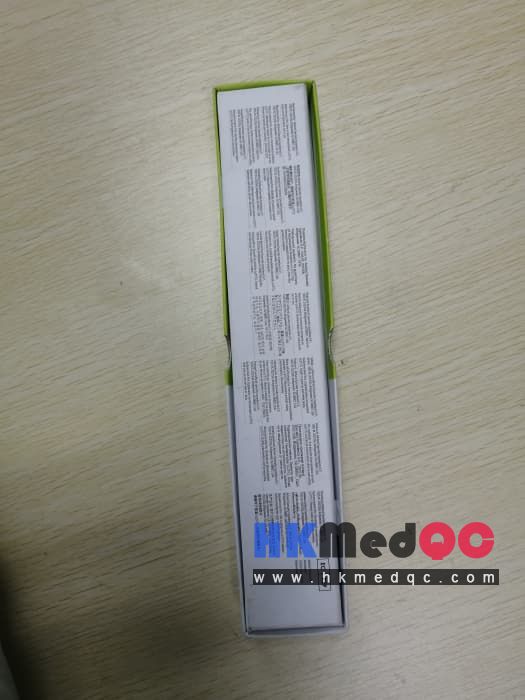

XR-M2 Radiochromic Film,Self-Developing X-Ray Dosimetry Film QA Film
Mode：XR-M2
Type:QA-Instruments
Contact： ken@hkmedqc.com
XR-M2 Radiochromic Film,Self-Developing X-Ray Dosimetry Film QA Film.PDF
Dosimeter films for IVR (Interventional Radiology). GAFCHROMIC XR-M2 is a reflective film used for physical irradiation and dose confirmation in mammography. With a single Gafchromic XR-M dosimeter film, the position of the light field, the position of the radiation field, and the position of the detector relative to each other can all be determined. Each box contains 50 films. The films are usually packaged in a box containing some metal and plastic filters, which change the sensitivity of the film beneath them, and the image of the film can effectively be used to obtain information about the incident radiation. Therefore, the uniformity of the response should be obtained by calibrating the film sensitivity. These dosimeters are called discriminative dosimeters because they not only provide the dose but also provide information about the quality of the irradiating radiation.
2. Self-developing operation: Zero chemical liquid, no darkroom required, simplify radiology quality control workflow
3. Excellent low-energy stability: Low energy dependence across diagnostic X-ray spectrum, consistent measuring accuracy
4. High spatial resolution: Captures local dose deviation of collimation, beam edge, focal spot
5. Solid double-layer structure: Anti-scratch, resistant to minor friction damage; post-exposure color stable for long-term filing
6. Convenient storage management: Conventional cold storage for unexposed film, no complex preservation conditions
7. Wide application compatibility: Human medical radiology + veterinary X-ray double use
| Item | Specification |
| Full Model | XR-M2 |
| Brand | Ashland |
| Product Type | Self-developing radiochromic dosimetry film |
| Resolution | >5000dpi |
| Applicable Dose Range | 2 cGy to 20 cGy |
| Processing | Radiation self-coloring, no chemical flushing |
| Main Scenarios | DR, CR, fluoroscopy, dental X-ray, mammography, veterinary radiography |
| Feature | Optimized for low-energy X-ray, small field dose mapping |
| Base material | Front: Yellow, Back: White polyester |
Core Advantages
1. Designed for diagnostic X-ray: Optimized response for 20kV–150kV diagnostic X-ray, perfect match DR, CR, fluoroscopy, dental ray2. Self-developing operation: Zero chemical liquid, no darkroom required, simplify radiology quality control workflow
3. Excellent low-energy stability: Low energy dependence across diagnostic X-ray spectrum, consistent measuring accuracy
4. High spatial resolution: Captures local dose deviation of collimation, beam edge, focal spot
5. Solid double-layer structure: Anti-scratch, resistant to minor friction damage; post-exposure color stable for long-term filing
6. Convenient storage management: Conventional cold storage for unexposed film, no complex preservation conditions
7. Wide application compatibility: Human medical radiology + veterinary X-ray double use
SAG: XR-M2 film,Gafchromic XR-M2,Ashland XR-M2,X-ray dosimetry film,Diagnostic x-ray radiochromic film,dental x-ray dose film,DR CR QA film,self developing x-ray film,Breast X-ray machine quality assurance
