PICC Ultrasound Phantom,Vascular Access Model with Blood Circulation
Mode：HMQ-PICCVPM
Type:QA-Phantom
Contact： ken@hkmedqc.com
Ultrasound-Guided Vascular Puncture Model is a high-fidelity medical training simulator designed for ultrasound-guided vascular procedures. It enables learners to practice and master core skills in a safe, realistic, and repeatable environment, including vascular ultrasound exploration, Doppler scanning, puncture, and PICC catheterization.
3.Product Structure
4.Important Notes
1.Use Cases & Applications
- Ultrasound vascular exploration and identification
- Vascular Doppler ultrasound scanning practice
- Ultrasound-guided vascular puncture (arterial/venous)
- Ultrasound-guided PICC catheterization
- Medical education and ultrasound skill assessment
- Simulation training for nursing, radiology, and emergency medicine staff
2.Key Features

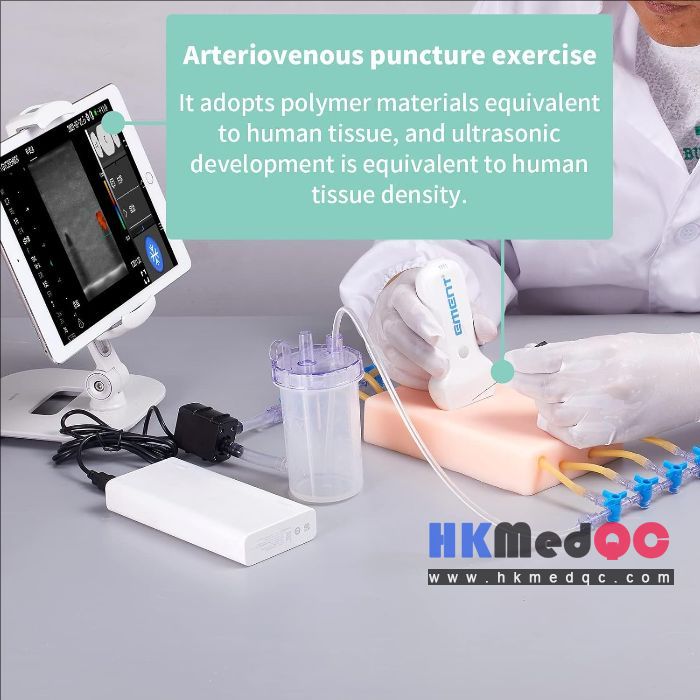

Tissue-Equivalent Polymer Material
Made of ultrasound-compatible polymer, the model mimics human tissue density, delivering lifelike ultrasound images of skin, muscle, and blood vessels for authentic practice.

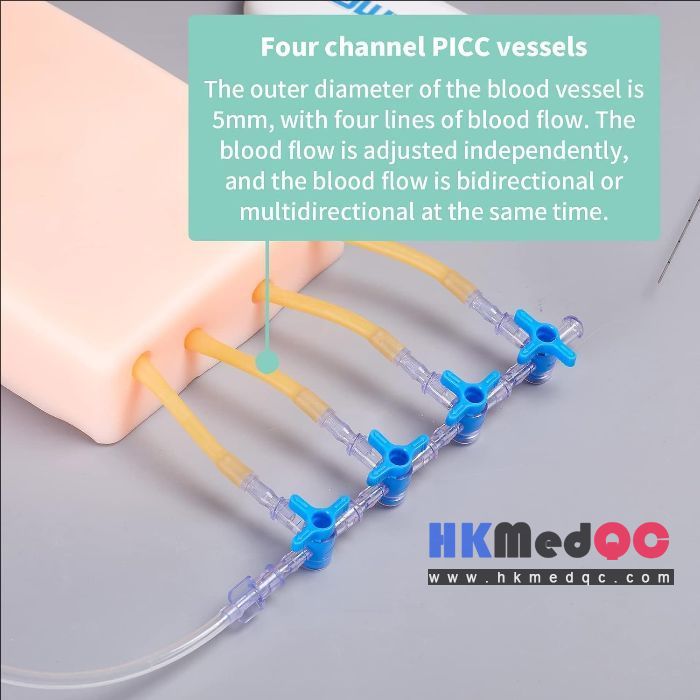

Multi-Channel, Controllable Vascular System

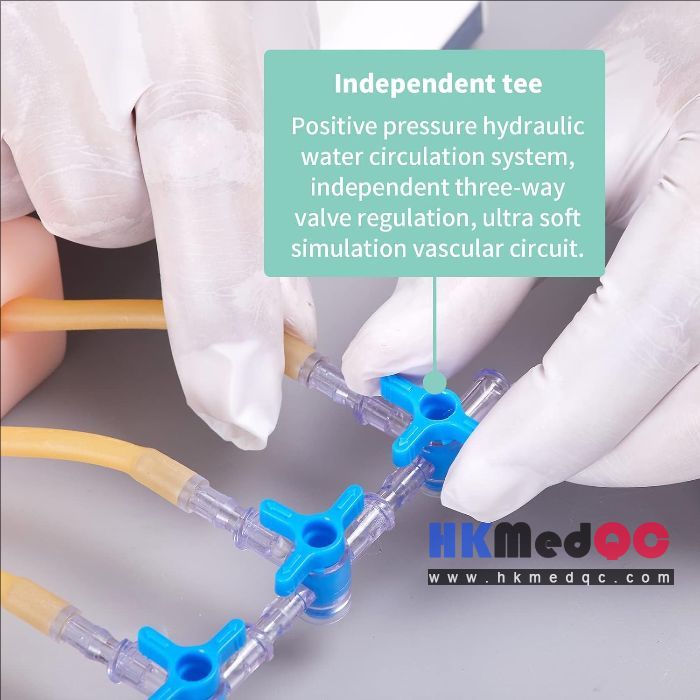

4 independent 5mm-diameter vessels support bidirectional or multi-directional blood flow simulation. Each channel can be adjusted separately via three-way valves to simulate different pressure levels and flow patterns.
Doppler & Arteriovenous Simulation

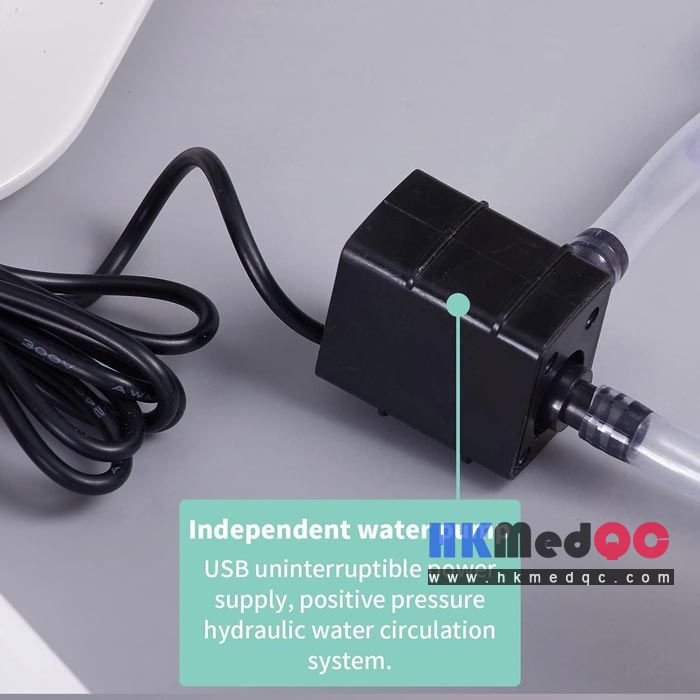

The positive-pressure water circulation system with continuous USB power supply replicates real arterial and venous blood flow, enabling true Doppler ultrasound imaging practice.
Highly Realistic Operating Environment
Circulating fluid simulates pulsatile arterial and steady venous blood flow, creating a realistic environment for in-plane/out-of-plane needle insertion, with simulated flashback feedback.
Durable & Reusable
Puncture-resistant construction allows repeated use with real puncture needles, reducing training costs. Compatible with standard ultrasound coupling gel and probes.
Customizable Vessel Configuration
Vessel shape, depth, and flow characteristics can be customized to meet specific training needs.
3.Product Structure

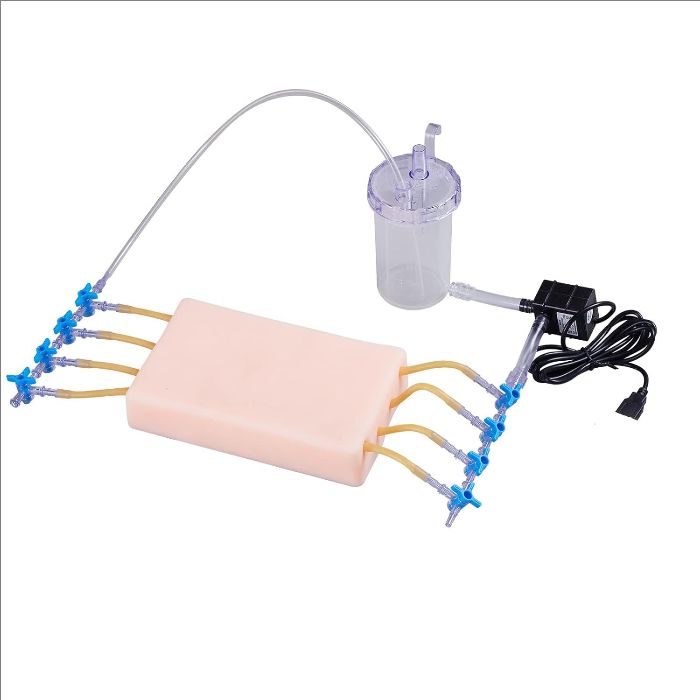

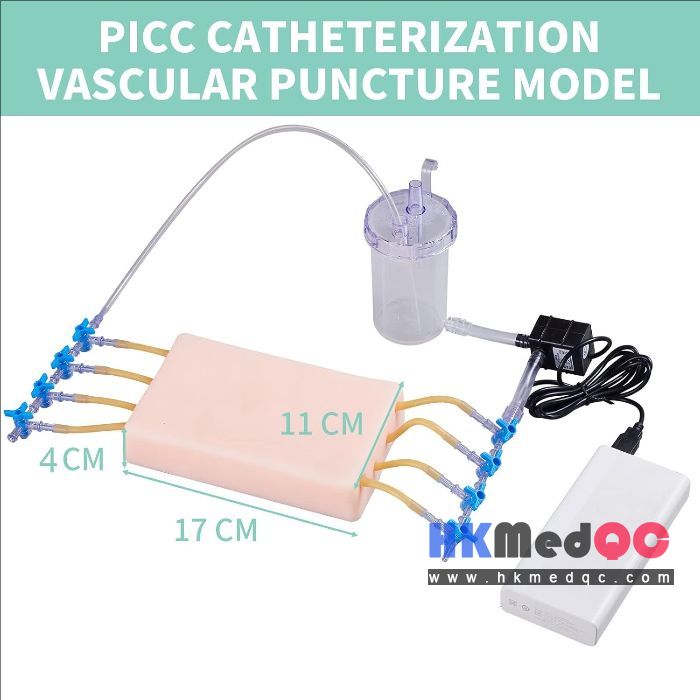

- The model consists of a puncture module with 4 built-in 5mm vessels. Each vessel is equipped with adjustment valves at both ends:
- One end connects to the independent water pump
- The other end connects to the water storage tank
- Adjusting the valve switches and flow direction simulates varying blood pressure and flow conditions for diverse clinical scenarios.
4.Important Notes
- A small amount of residual water in the model upon delivery is normal.
- Before use, prime the pump and tubing to remove air bubbles for optimal flow simulation.
- Clean and dry the model after use to extend its service life.
