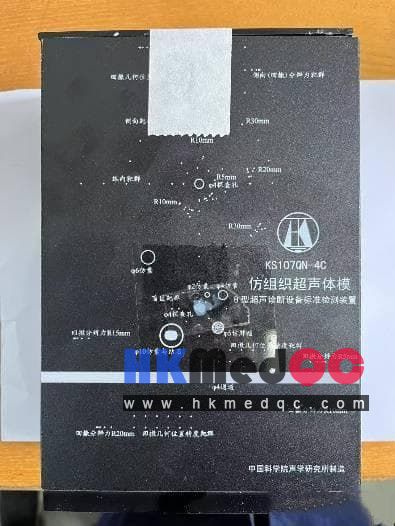

KS107QN-4C Artificial Tissue Ultrasound Body Model, KS107QN-4C Phantom
Mode：KS107QN-4C
Type:QA-Phantom
Contact： ken@hkmedqc.com
KS107QN-4C Artificial Tissue Ultrasound Body Model, KS107QN-4C Phantom.PDF
1. Compliant with the standard YY/T 1659-2019 for the general technical requirements of vascular ultrasound diagnostic equipment.
2. The four walls and the bottom are made by processing and assembling with plexiglass. The outer surfaces of the four walls are covered with plastic film panels for indication and decoration; the overall dimensions are 21cm × 14cm × 6.6cm.
3. The bottom plate has two circular holes with a diameter of 36mm and is sealed with rubber thin layers for injecting maintenance fluid and removing air.
4. It is filled with TM material that meets the requirements of national standards as the standard sound transmission medium.
5. KS107QN-4A has a cavity probe scanning hole with a diameter of Ф3mm, KS107QN-4B has a cavity probe scanning hole with a diameter of Ф10mm, and KS107QN-4C has a cavity probe scanning hole with a diameter of Ф4mm. The probes are inserted into the scanning holes for ultrasound scanning.
6. Technical Parameters :
Sound Velocity of TM Material: 1540 ± 10 m/s ( 23 ± 3℃)
Slope of Sound Attenuation Coefficient in TM Material: 0.70 ± 0.05 dB/cm/MHz
(23 ± 3°C)
Nylon Target Wire Diameter: 0.1 ± 0.02 mm
Nylon Target Wire Positional Tolerance: ± 0.05 mm
The target groups within the phantom include: blind zone targets; axial, lateral, and elevational resolution targets; retraction resolution targets; and geometric positional accuracy targets. The simulated lesions include: cystic lesions, solid (tumor-like) lesions, and combined cyst-and-stone lesions.
2. The four walls and the bottom are made by processing and assembling with plexiglass. The outer surfaces of the four walls are covered with plastic film panels for indication and decoration; the overall dimensions are 21cm × 14cm × 6.6cm.
3. The bottom plate has two circular holes with a diameter of 36mm and is sealed with rubber thin layers for injecting maintenance fluid and removing air.
4. It is filled with TM material that meets the requirements of national standards as the standard sound transmission medium.
5. KS107QN-4A has a cavity probe scanning hole with a diameter of Ф3mm, KS107QN-4B has a cavity probe scanning hole with a diameter of Ф10mm, and KS107QN-4C has a cavity probe scanning hole with a diameter of Ф4mm. The probes are inserted into the scanning holes for ultrasound scanning.
6. Technical Parameters :
Sound Velocity of TM Material: 1540 ± 10 m/s ( 23 ± 3℃)
Slope of Sound Attenuation Coefficient in TM Material: 0.70 ± 0.05 dB/cm/MHz
(23 ± 3°C)
Nylon Target Wire Diameter: 0.1 ± 0.02 mm
Nylon Target Wire Positional Tolerance: ± 0.05 mm
The target groups within the phantom include: blind zone targets; axial, lateral, and elevational resolution targets; retraction resolution targets; and geometric positional accuracy targets. The simulated lesions include: cystic lesions, solid (tumor-like) lesions, and combined cyst-and-stone lesions.
