KS215BP Ultrasound Pelvic Model,KS215BP Customized Bladder Phantom
Mode：KS215BP
Type:QA-Phantom
Contact： ken@hkmedqc.com
KS215BP Ultrasound Pelvic Model,KS215BP Customized Bladder Phantom.PDF

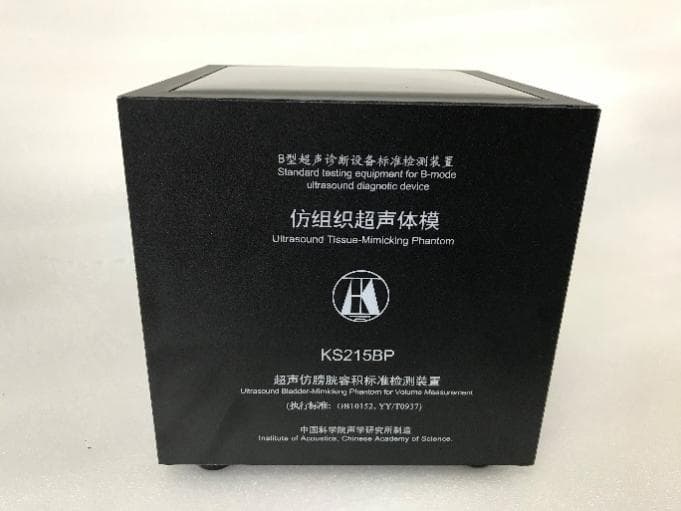

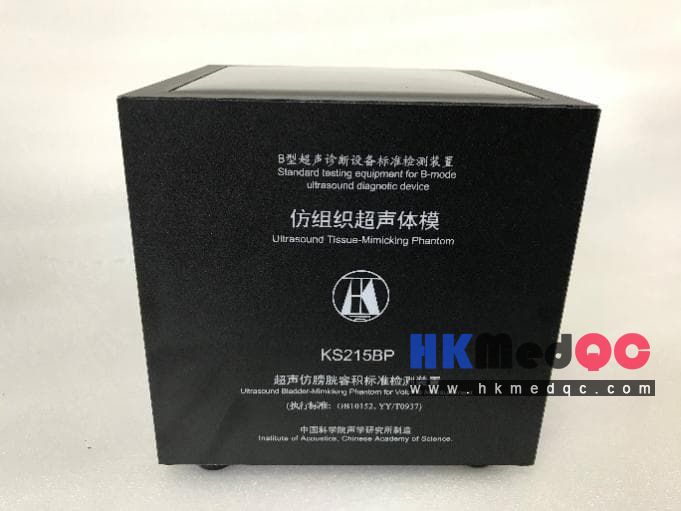

The main function of the ultrasonic bladder scanner is to measure the volume or urine volume of the bladder. The accuracy of the measurement values is the primary technical requirement for this instrument, and the KS215BP model is the dedicated device for testing this performance. The essential part of this device is the background ultrasonic tissue (TM) material and the oval-shaped target embedded in it.
The TM material background contains an oval-shaped target with a shape and size similar to a pebble, with a volume ranging from 120 cm³ to 140 cm³. The exact quantity value can be found in the random materials.
The long axis of the oval-shaped target is in the diagonal direction of the sound window, approximately parallel to the surface of the sound window.
The technical characteristics of the KS215BP bladder model follow the relevant medical industry standards, specifically:
1. Background (high echo area) TM material
(1) Sound speed: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: (0.5 ± 0.05) dB/(cm·MHz) (23℃ ± 3℃)
2. Oval-shaped target (no echo area) material
(1) Sound speed: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: < 0.05 dB/(cm·MHz) (23℃ ± 3℃)
3. Oval-shaped target volume:
Volume: 137 cm³, Axis length: 8.3 cm, Maximum diameter: 5.6 cm
KS215BP Ultrasound Model
(Bladder Model Replica, Customized Type; Customized type is generally considered to be in line with the technical requirements for pediatric bladder)
1. The TM material contains two targets of different sizes and elliptical shapes, with volumes of 20 cm³ and 99 cm³ respectively.
Volume: 99 cm³, Axial length: 6.7 cm, Maximum diameter: 5.3 cm
Volume: 20 cm³, Axial length: 3.9 cm, Maximum diameter: 3.1 cm
2. The long axis of the elliptical targets is in the width direction of the sound window, approximately parallel to the surface of the sound window.
3. TM material of the background (high echo area)
(1) Sound velocity: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: (0.5 ± 0.05) dB/(cm·MHz) (23℃ ± 3℃)
4. Material of the oval target (no echo area)
(1) Sound velocity: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: < 0.05 dB/(cm·MHz) (23℃ ± 3℃)
Crafted from high-stability tissue-mimicking (TM) material, the phantom features:
The TM material background contains an oval-shaped target with a shape and size similar to a pebble, with a volume ranging from 120 cm³ to 140 cm³. The exact quantity value can be found in the random materials.
The long axis of the oval-shaped target is in the diagonal direction of the sound window, approximately parallel to the surface of the sound window.
The technical characteristics of the KS215BP bladder model follow the relevant medical industry standards, specifically:
1. Background (high echo area) TM material
(1) Sound speed: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: (0.5 ± 0.05) dB/(cm·MHz) (23℃ ± 3℃)
2. Oval-shaped target (no echo area) material
(1) Sound speed: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: < 0.05 dB/(cm·MHz) (23℃ ± 3℃)
3. Oval-shaped target volume:
Volume: 137 cm³, Axis length: 8.3 cm, Maximum diameter: 5.6 cm
KS215BP Ultrasound Model
(Bladder Model Replica, Customized Type; Customized type is generally considered to be in line with the technical requirements for pediatric bladder)
1. The TM material contains two targets of different sizes and elliptical shapes, with volumes of 20 cm³ and 99 cm³ respectively.
Volume: 99 cm³, Axial length: 6.7 cm, Maximum diameter: 5.3 cm
Volume: 20 cm³, Axial length: 3.9 cm, Maximum diameter: 3.1 cm
2. The long axis of the elliptical targets is in the width direction of the sound window, approximately parallel to the surface of the sound window.
3. TM material of the background (high echo area)
(1) Sound velocity: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: (0.5 ± 0.05) dB/(cm·MHz) (23℃ ± 3℃)
4. Material of the oval target (no echo area)
(1) Sound velocity: (1540 ± 10) m/s (23℃ ± 3℃)
(2) Sound attenuation coefficient slope: < 0.05 dB/(cm·MHz) (23℃ ± 3℃)
Crafted from high-stability tissue-mimicking (TM) material, the phantom features:

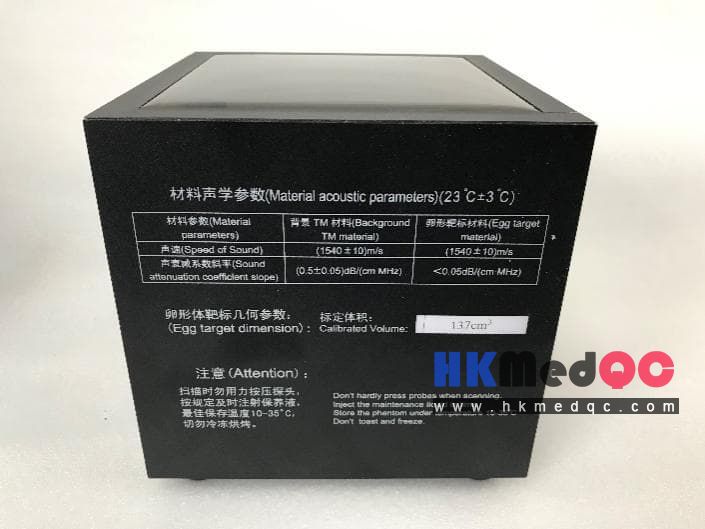

- Sound speed: 1540±10 m/s (23±3°C)
- Attenuation coefficient: 0.5±0.05 dB/cm/MHz (background); 0.045±0.005 dB/cm/MHz (bladder target)
- Target volume: 120–200 cm³ (standard 137 cm³ ovoid)
It integrates an anatomically realistic bladder cavity embedded in tissue-mimicking gel, simulating human bladder acoustic properties for precise calibration of bladder volume measurement, imaging accuracy, and probe performance. The durable, leak-proof design ensures long-term stability and easy storage.
Key Applications:
- Calibration of bladder scanner volume accuracy
- Verification of imaging quality and geometric precision
- Routine QA and periodic calibration for urology ultrasound equipment
- Training for clinical ultrasound scanning techniques
