Pro-Dent Dental Phantom,Dental Panoramic Phantom,Pro-Dent All
Mode：Pro-Dent-All
Type:QA-Phantom
Contact： ken@hkmedqc.com
Pro-Dent dental phantom, Pro-Dent All dental phantom is used for acceptance testing and stability evaluation of dental imaging equipment, suitable for intraoral, panoramic, and cephalometric dental X-ray units. It enables assessment of spatial resolution and low-contrast resolution.
Pro-Dent dental testing model, Pro-Dent All dental model technology parameters:1. Contains different-sized central ring grooves for placing different-sized conical collimation tubes.
2. Test model, made of PMMA material.
1) Resolution test module, testing range: 1.6-3LP/mm (16-30LP/cm), 4-8LP/mm (40-80LP/cm)
2) The model has a 6mm thick aluminum absorber.
3) Low contrast resolution test module: On a 0.5mm aluminum plate, there are 4 holes of different depths, with diameters of 1mm, 1.5mm, 2mm, and 2.5mm.
4. There are gaps on the base plate for placing the dosimeter detector or image receiver.

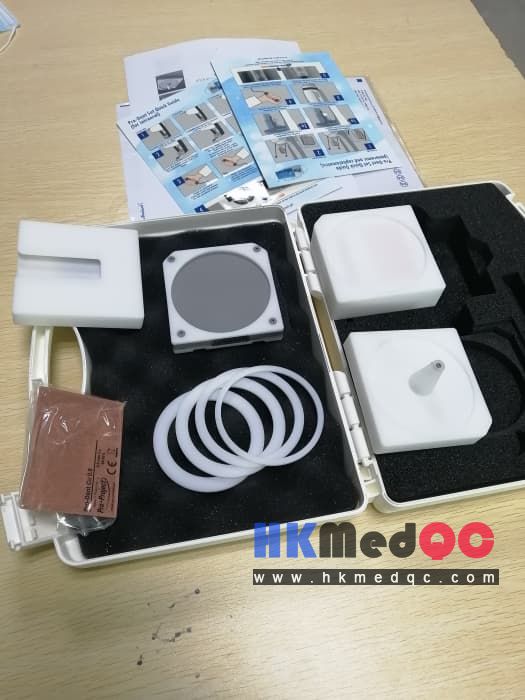

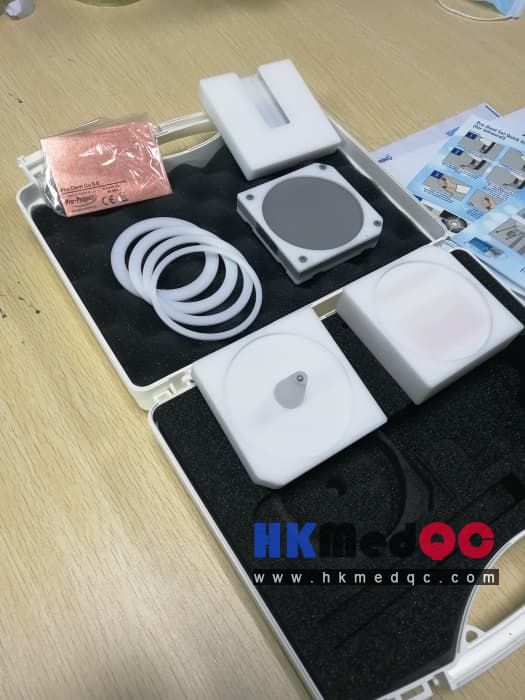

5. Comes with 1 copper plate of 0.8mm thickness, 4 central ring grooves, and 1 bandage.
Pro-Dent Dental Inspection Model, Pro-Dent All Dental Model Panoramic Dental Model Technical Parameters:
Meets the requirements for dental machine model detection as stipulated in the "JJG1101-2014 Medical Diagnostic Panoramic Dental X-ray Radiation Source Verification Procedure".
It contains several modules, with the following being the main parts:
1. Low contrast resolution test module
On a 0.5mm aluminum (purity 99.5%) plate, circular holes with diameters of 1.0mm, 1.5mm, 2.0mm, and 2.5mm are set.
2. High contrast resolution test module
The line pair range is set at: 1.6lp/mm - 3.0lp/mm (1.6 lp/mm, 1.8 lp/mm, 2.0 lp/mm, 2.3 lp/mm, 2.5 lp/mm, 2.8 lp/mm, 3.0 lp/mm), with the line pairs arranged at 45° and a lead equivalent of 0.05mm.
3. Setting of additional attenuation layer: 6mm aluminum (purity 99.5%)
4. Providing panoramic dental-specific test accessories
Conforming:
IEC 61223-3-4, IEC 61223-3-5 and IEC 61223-2-7
DIN 6868-5 and DIN V 6868-151
ÖNORMS5240-5 and ÖNORMS5240-11
IEC 60336: 2005 CE certification
• 0.8 millimeter copper filter - equivalent to the patient's head
• Positioning and alignment with the film or digital detector
• For fixation, to connect the image with the beam applicator of the X-ray unit perpendicularly
• For centering the contrast imaging on the beam applicator of the X-ray unit

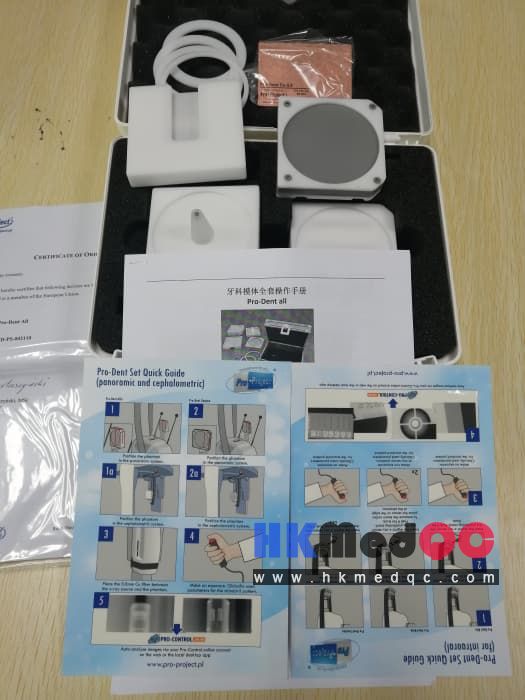

• With documentation on a CD
• An elegant and convenient aluminum box for storing the imaging equipment
