Multi-Modality Small Animal Phantom,RT-C01 Cylindrical Rat Phantom
Mode：RT-C01
Type:QA-Phantom
Contact： ken@hkmedqc.com

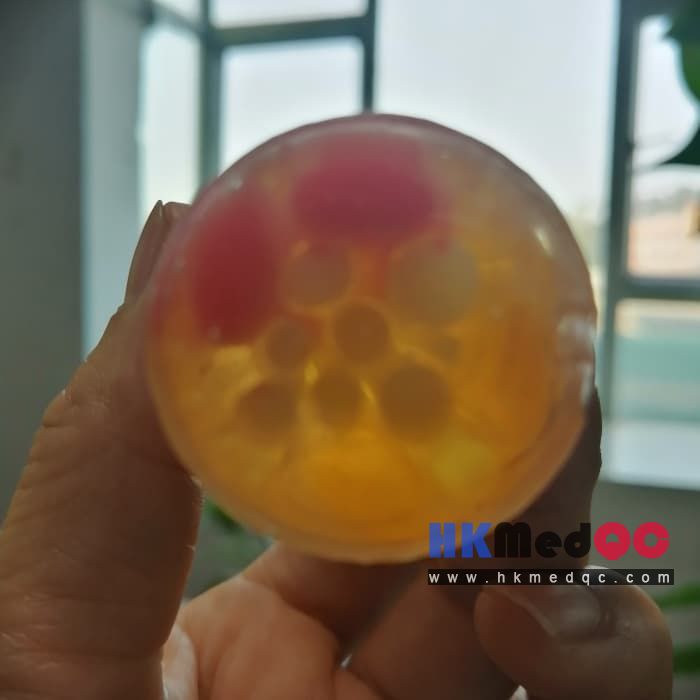

RT-C01 cylindrical rat phantom,dedicated to preclinical small animal imaging calibration and biomedical research. The simple cylindrical design simulates the comprehensive anatomical characteristics of laboratory rats and mice, with overall dimension 27mm diameter ×70mm height, perfectly matching the body size of common experimental rodents.

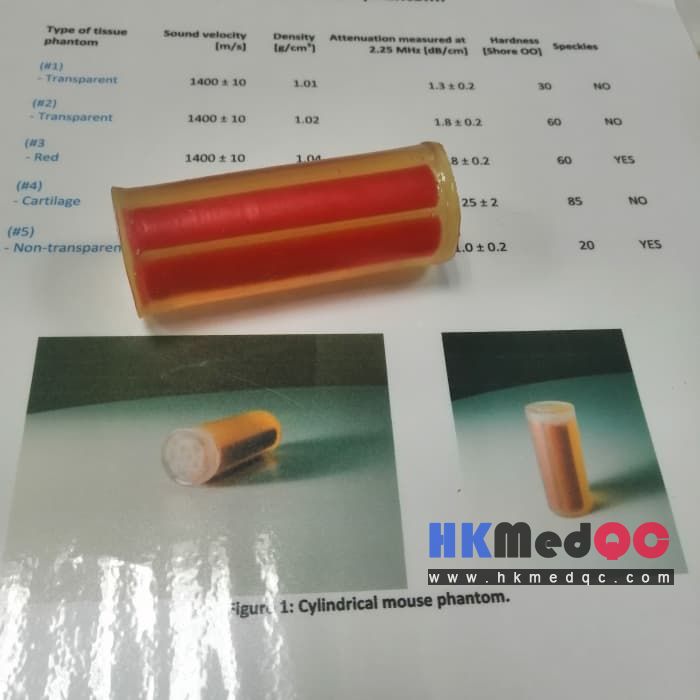

The phantom adopts multi-component tissue-equivalent solid material, precisely simulates the imaging characteristics of rat fat, muscle, visceral organs, cartilage and bone. Compatible with three mainstream imaging modalities: CT, MRI and B-mode ultrasound. The internal structure contains multiple simulated tissue zones with/without ultrasonic speckles, fully reproducing the real imaging contrast of rodent organs under different equipment. Solid non-liquid construction avoids leakage, supports thousands of repeated scans with stable long-term performance.
2.Universal three-modal: Compatible with Micro-CT, small animal nuclear magnetic resonance, and veterinary B-ultrasound. The T2 weighted nuclear magnetic imaging has an extremely high restoration degree

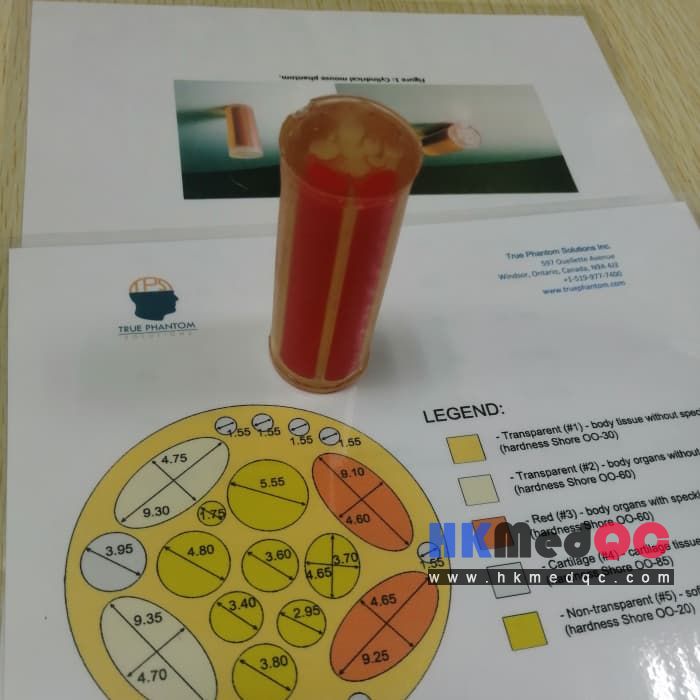

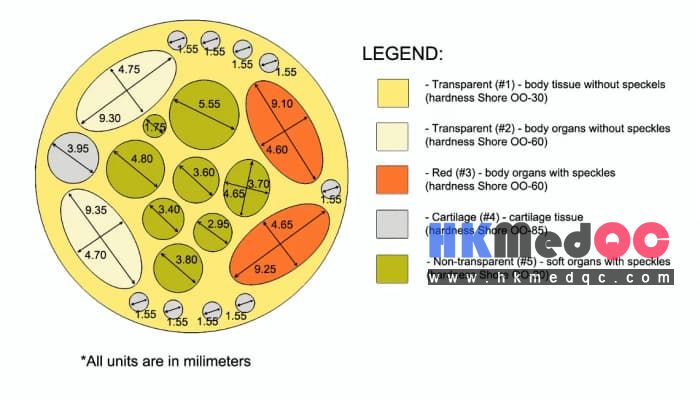

3.Hierarchical bionic internal structure: Differentiates non-spotted soft tissues, low-echo internal organs, high-echo muscles, and hard bones and cartilage, perfectly replicating the ultrasonic echo differences of multiple tissues in rats
4.Precise alignment of imaging parameters: CT values, sound velocity, sound attenuation, and nuclear magnetic relaxation time match the live rat tissues
5.Solid-state maintenance-free: No internal liquid, resistant to over 10,000 scans, simple storage and not prone to deterioration
6.Full-dimensional customizable: Can be modified as needed for the outer diameter size, internal organ arrangement, and adjustment of various tissue acoustic/radiation parameters
RT-A01: Complete anatomical rat model, equipped with a complete skeleton of heart, liver, spleen, lungs and kidneys, focusing on anatomical teaching and detailed lesion research
The phantom adopts multi-component tissue-equivalent solid material, precisely simulates the imaging characteristics of rat fat, muscle, visceral organs, cartilage and bone. Compatible with three mainstream imaging modalities: CT, MRI and B-mode ultrasound. The internal structure contains multiple simulated tissue zones with/without ultrasonic speckles, fully reproducing the real imaging contrast of rodent organs under different equipment. Solid non-liquid construction avoids leakage, supports thousands of repeated scans with stable long-term performance.
Core advantage
1.Standard size of laboratory rodents: Φ27mm × H70mm, compatible with the majority of small animal imaging equipment platforms available on the market2.Universal three-modal: Compatible with Micro-CT, small animal nuclear magnetic resonance, and veterinary B-ultrasound. The T2 weighted nuclear magnetic imaging has an extremely high restoration degree
3.Hierarchical bionic internal structure: Differentiates non-spotted soft tissues, low-echo internal organs, high-echo muscles, and hard bones and cartilage, perfectly replicating the ultrasonic echo differences of multiple tissues in rats
4.Precise alignment of imaging parameters: CT values, sound velocity, sound attenuation, and nuclear magnetic relaxation time match the live rat tissues
5.Solid-state maintenance-free: No internal liquid, resistant to over 10,000 scans, simple storage and not prone to deterioration
6.Full-dimensional customizable: Can be modified as needed for the outer diameter size, internal organ arrangement, and adjustment of various tissue acoustic/radiation parameters
Model classification to avoid pitfalls
RT-C01: Round cylindrical simplified rat model, with high cost-effectiveness, focusing on equipment calibrationRT-A01: Complete anatomical rat model, equipped with a complete skeleton of heart, liver, spleen, lungs and kidneys, focusing on anatomical teaching and detailed lesion research
