WEK-0724 Femur Phantom,WEK-0724 Dual-energy X-ray Bone Density Phantom
Mode：WEK-0724
Type:QA-Phantom
Contact： ken@hkmedqc.com
WEK-0724 Femur Phantom,WEK-0724 Dual-energy X-ray Bone Density Phantom.PDF
The Femur Phantom is a precision-machined, anatomically shaped test artifact designed for calibrating industrial X-ray, computed tomography (CT), and dual-energy X-ray absorptiometry (DXA) systems. It replicates the complex geometry of a human proximal femur, providing a realistic reference for validating dimensional metrology, geometric accuracy, and bone density measurement performance.
Table A.2 Femur Mold Parameters Table
A.1. Femoral Mold

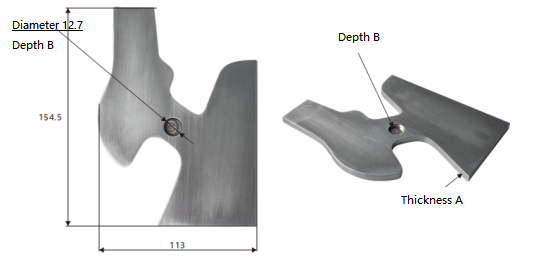

The femoral mold is recommended to be of the type shown in Figure A.1 and Table A.1, or any other model with the corresponding functions. The material is aluminum.
Table A.2 Femur Mold Parameters Table
| Model | |
 |
 |
| Bone density | Low bone density (≈0 .6g/cm²) |
Medium bone mineral density (≈0 .9g/cm²) |
high bone mineral density (≈1.2g/cm ²) |
| Thickness A | 3.90 mm | 5.85 mm | 7.80 mm |
| Depth B | 1.83 mm | 2.74 mm | 3.66 mm |
| Simulated bone material: Aluminum 6061 | |||
Applications:
- Industrial X-ray/CT dimensional accuracy calibration
- Bone mineral density (BMD) testing validation (DXA/QCT)
- Orthopedic implant inspection and measurement verification
- NDT equipment performance testing for complex geometries
- Routine quality control in medical device manufacturing
