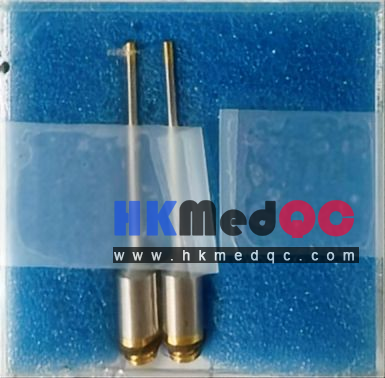

WEK-NP Needle-type Hydrophone,WEK1000 & WEK0500 Hydrophones
Mode：WEK-NP
Type:QA-Phantom
Contact： ken@hkmedqc.com
WEK-NP Needle-type Hydrophone,WEK1000 & WEK0500 Hydrophones.PDF
The WEK1000 and WEK0500 hydrophones are two types of needle-shaped hydrophones. The front end of these hydrophones is equipped with a special piezoelectric membrane, which can convert pressure signals into voltage signals.
The hydrophones come with calibration data and a 2-meter-long coaxial cable. The coaxial cable connects the hydrophones to the high-impedance input port of the oscilloscope.
Technical specification
| Model | WEK-1000 | WEK-0500 |
| Average Sensitivity | 392.5 nV/Pa | 117.65 nV/Pa |
| Typical Frequency Response | 0.1 to 10Mhz | |
| Sensitivity Tolerance | ±3 dB variation between individual probes | |
| Probe Material | Piezoelectric Film | |
