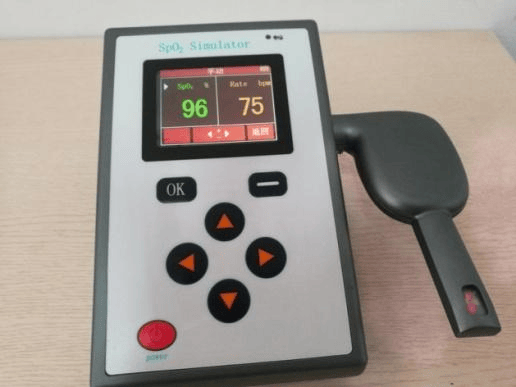

Oxygen Saturation & Pulse Rate Simulator, Medical SpO2 Tester
Mode：WEK-SpO2
Type:QA-Phantom
Contact： ken@hkmedqc.com
Oxygen Saturation & Pulse Rate Simulator, Medical SpO2 Tester.pdf

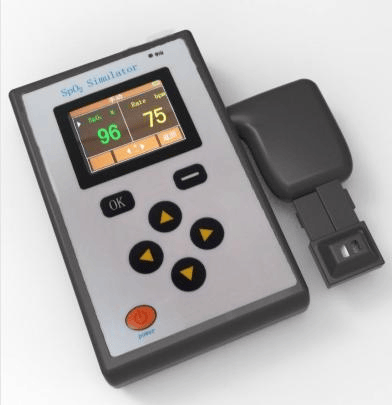

Product Name: Oxygen Saturation Simulator (Transmissive Type: OFOLLOW-B / Reflective Type: SURPASS-A)
Product Overview
The Oxygen Saturation Simulator is a professional-grade testing equipment dedicated to medical SpO2 (oxygen saturation) and pulse rate simulation. It provides a precise, controllable environment for calibrating reflective and transmissive-type oxygen sensors, pulse oximeters, and related medical devices. Whether for R&D testing, production line quality control, or clinical equipment maintenance, this simulator delivers stable and accurate simulation results.
Main Features
- Reflective oxygen saturation simulation is suitable for reflectance‑type oxygen sensors. It is currently the only simulator on the market that can accurately adjust the oxygen saturation value and be calibrated.
- The simulated finger is directly connected to the main unit and can be rotated, making probe operation very convenient.
- Electromagnetic compatibility meets the latest version of IEC60601‑1‑2, with radiated emissions meeting Class B requirements.
Main Functions
- 1. Simulate oxygen saturation.
- 2. Simulate pulse rate.
- 3. Preset patient condition simulation.
- 4. Test the response time of the device under test.
- 5. Simulate oxygen saturation and pulse rate under different perfusion levels.
- 6. Test the performance of the device under test with different interference sources.
- 7. Select different R‑curves.
Main Parameters
| Parameter | Specification | |
|---|---|---|
| Oxygen Saturation | Measurement range | 35% ~ 100% |
| Resolution | 1% | |
| Accuracy | When SpO₂ range is 70% ~ 100%: ±1% or the larger of ± the accuracy of the DUT; When range is 70% ~ 50%: ±3% or the larger of ± the accuracy of the DUT; Below 50%: undefined. |
|
| Pulse Rate | Measurement range | 20 bpm ~ 300 bpm |
| Resolution | 5 bpm | |
| Accuracy | ±1% ±1 bpm | |
| Perfusion | Measurement range | 0.000% ~ 20.000% |
| Resolution | 1.000% ~ 20.000%: 1%; 0.100% ~ 0.900%: 0.1%; 0.000 ~ 0.075%: 0.025%. |
|
| Preset Patient Conditions | 24 groups preset; 8 groups by default at power‑on. The number of groups can be adjusted by setting the motion level. | |
| Operating Voltage | Adapter DC 5V; Battery 3.7V rechargeable Li‑ion, charge/discharge cycles ≥500 times. | |
| Electromagnetic Compatibility | Radiated Emissions (RE) | Class B |
| Radiated Immunity (RS) | 20 V/m | |
| Electrostatic Discharge (ESD) | Air 8 kV, contact 15 kV (Note: non‑direct contact with optical probe) | |
| Other | Complies with YY0505:2012 and IEC60601‑1‑2:2014 | |
