Product Description

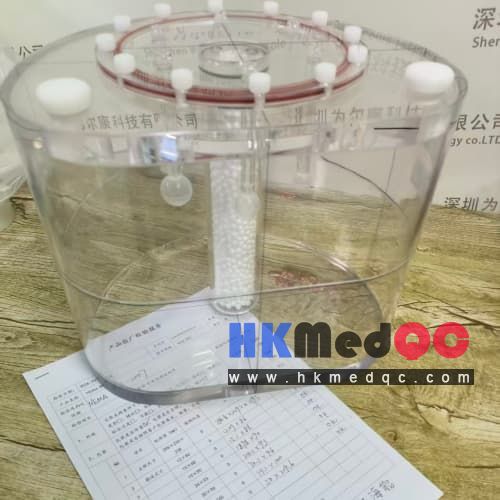

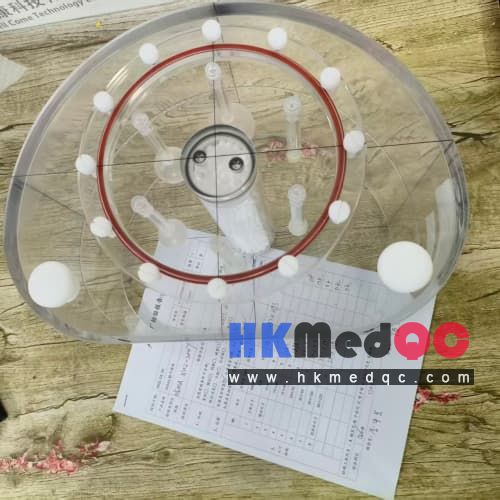

• The product consists of a body phantom, lung insert, with six fillable spheres of various sizes
• The NEMA IEC PET Body Phantom Set is designed in accordance with the recommendations by the National Electrical Manufacturers Association (NEMA) to standardize the measurement of performance of PET.
• It is recommended for use in the evaluation of reconstructed image quality in whole body PET imaging.

Main Applications

• Simulation of whole-body imaging especially using PET and camera-based coincidence imaging techniques
• Evaluation of reconstructed image quality in wholebody PET and camera-based coincidence imaging Determination of the coincidence count rate characteristics in brain and cardiac imaging
• Evaluation of the relationship between true coincidence count rate and radioactivity
• Determination of the address errors caused by address pile up
• Evaluation of the count loss correction scheme
• Research

A.1 Technical Parameters

• A.1.1 Complies with the requirements of NEMA NU2-2007.
• A.1.2 The inner diameters of the six hemispheres are: 10 mm, 13 mm, 17 mm, 22 mm, 28 mm and 37 mm.
• A.1.3 The distance from the sphere plane to the inner wall is approximately ≤ 70 mm.
• A.1.1 Complies with the requirements of NEMA NU2-2007.
• A.1.2 The inner diameters of the six hemispheres are: 10 mm, 13 mm, 17 mm, 22 mm, 28 mm and 37 mm.
• A.1.3 The distance from the sphere plane to the inner wall is approximately ≤ 70 mm.
• A.1.4 The cylinder volume is approximately ≥ 9.7 L.
• A.1.5 The outer diameter of the cylinder is: ≥ 51 mm.
• A.1.6 The outer length of the cylinder is: ≥ 180 mm.
